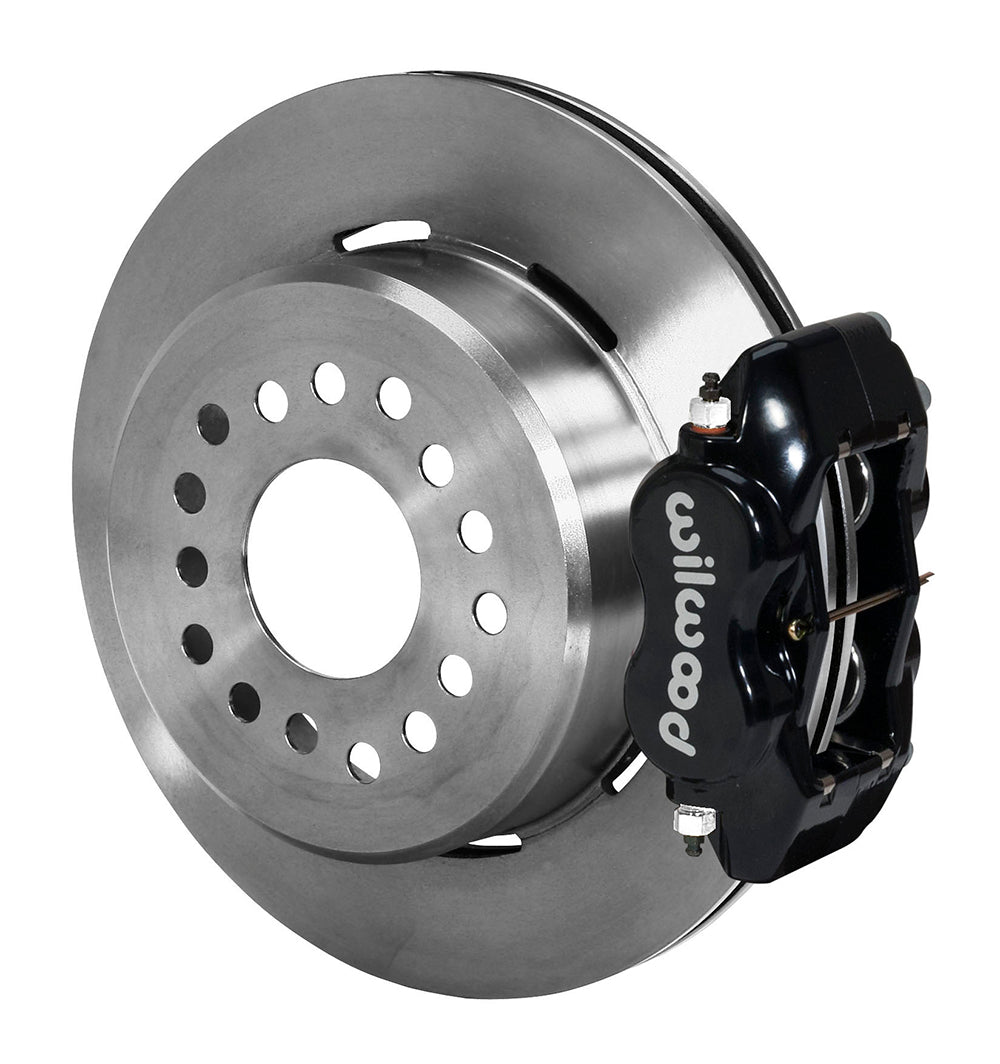

Wilwood Forged Dynalite Rear Parking Brake Kit — 2005-2014 Mustang — 140-9228

FDLI P/S Park Brake Kit — 2005-2014 Mustang.

Wilwood part number: 140-9228.

• Rear End Axle:: Mustang 05-up
• Axle Offset:: 2.66
• Mount Type:: Lug
• Caliper Type:: 4 - Black Powder Coat
• Rotor Diameter:: 12.19
• Min Wheel Diameter Req'd*:: 15
• Confirm The Configuration! Mustang 05-up Flange: Confirm Offset Measurement! Axle Flange Cross-Section
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-13839-BK
• Right Hand - Part No:: 120-13839-BK
• Type:: Forged Dynalite Internal
• Finish Color:: Black Powder Coat
• Piston Count:: 4
• Piston 1 Bore (in):: 1.38
• Piston 2 Bore (in):: 1.38
• Piston Area (In²):: 3.00
• Piston Type:: Stainless
• Mount Type:: Lug
• Brake Pad Plate:: 7112
• Brake Pad Area (In²):: 6.36

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
