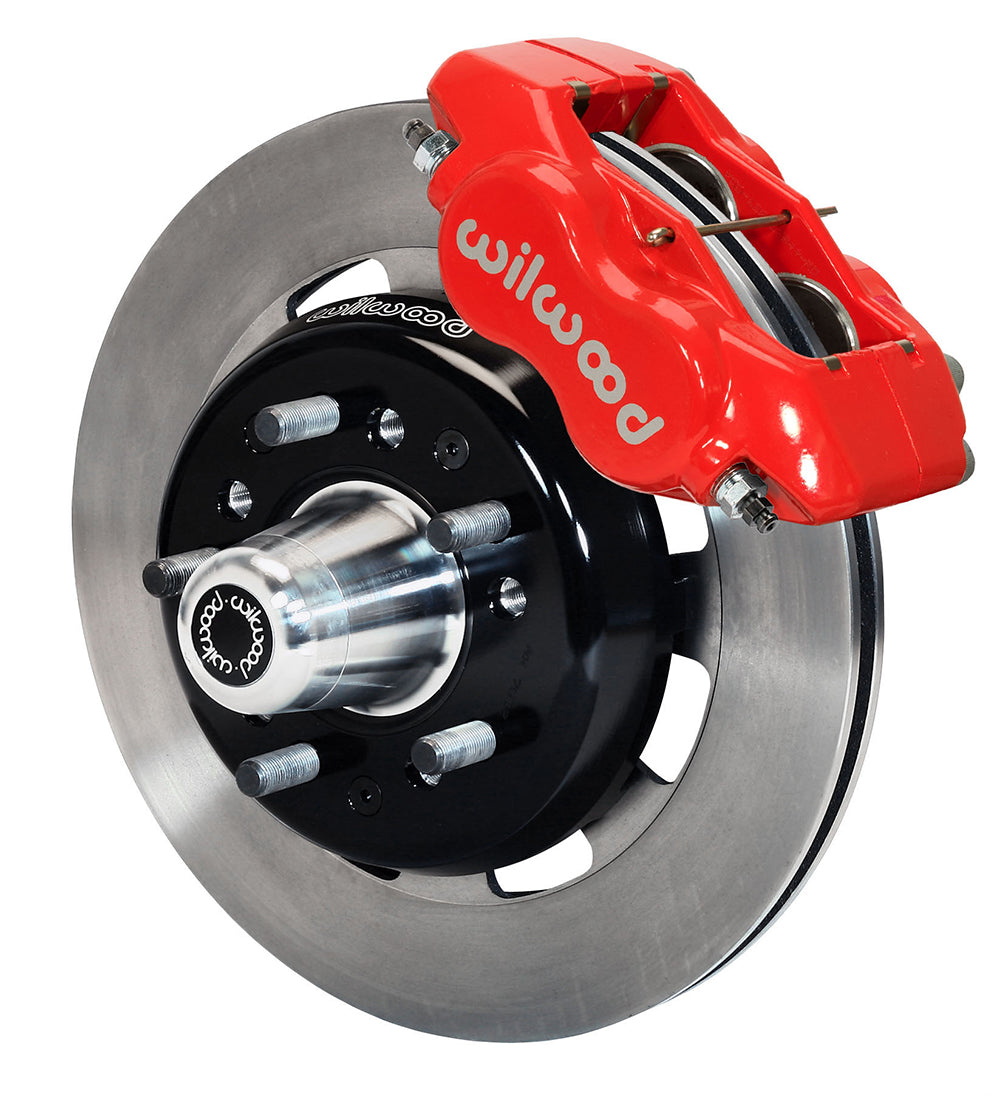

Wilwood Forged Dynalite Big Brake Front Brake Kit (Hub) — 55-57 Chevy — 140-7676-R

FDLI Front Kit,12.19", Red — 55-57 Chevy.

Wilwood part number: 140-7676-R.

• OE Hub Offset:: +.23
• Spindle Type:: Factory Drum Spindle
• Mount Type:: Lug
• Caliper Type:: 4 - Red Powder Coat
• Rotor Diameter:: 12.19
• Min Wheel Diameter Req'd*:: 15
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-13844-RD
• Right Hand - Part No:: 120-13844-RD
• Type:: Forged Dynalite Internal
• Finish Color:: Red Powder Coat
• Piston Count:: 4
• Piston 1 Bore (in):: 1.75
• Piston 2 Bore (in):: 1.75
• Piston Area (In²):: 4.80
• Piston Type:: Stainless
• Mount Type:: Lug
• Brake Pad Plate:: 7112
• Brake Pad Area (In²):: 6.36
• Brake Pad Volume (In³):: 2.1

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
