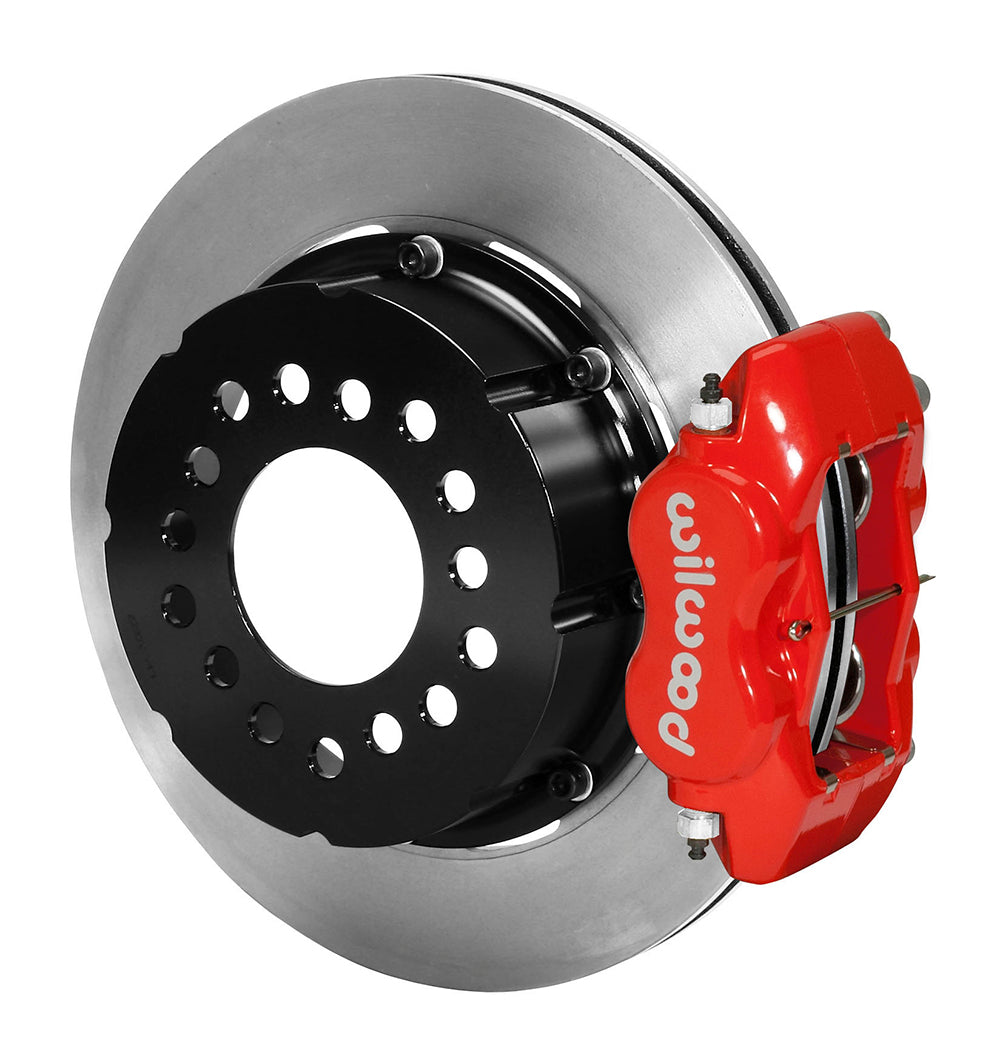

Wilwood Forged Dynalite Pro Series Rear Brake Kit — 58-64 Olds/Pontiac Ends — 140-2111-R

FDLI P/S Rear Kit, Red — 58-64 Olds/Pontiac Ends.

Wilwood part number: 140-2111-R.

• Rear End Axle:: Olds/Pontiac
• Axle Offset:: 2.91
• Mount Type:: Lug
• Caliper Type:: 4 - Red Powder Coat
• Rotor Diameter:: 12.19
• Min Wheel Diameter Req'd*:: 15
• Confirm The Configuration! Olds/Pontiac Flange: Confirm Offset Measurement! Axle Flange Cross-Section
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-13839-RD
• Right Hand - Part No:: 120-13839-RD
• Type:: Forged Dynalite Internal
• Finish Color:: Red Powder Coat
• Piston Count:: 4
• Piston 1 Bore (in):: 1.38
• Piston 2 Bore (in):: 1.38
• Piston Area (In²):: 3.00
• Piston Type:: Stainless
• Mount Type:: Lug
• Brake Pad Plate:: 7112
• Brake Pad Area (In²):: 6.36

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
