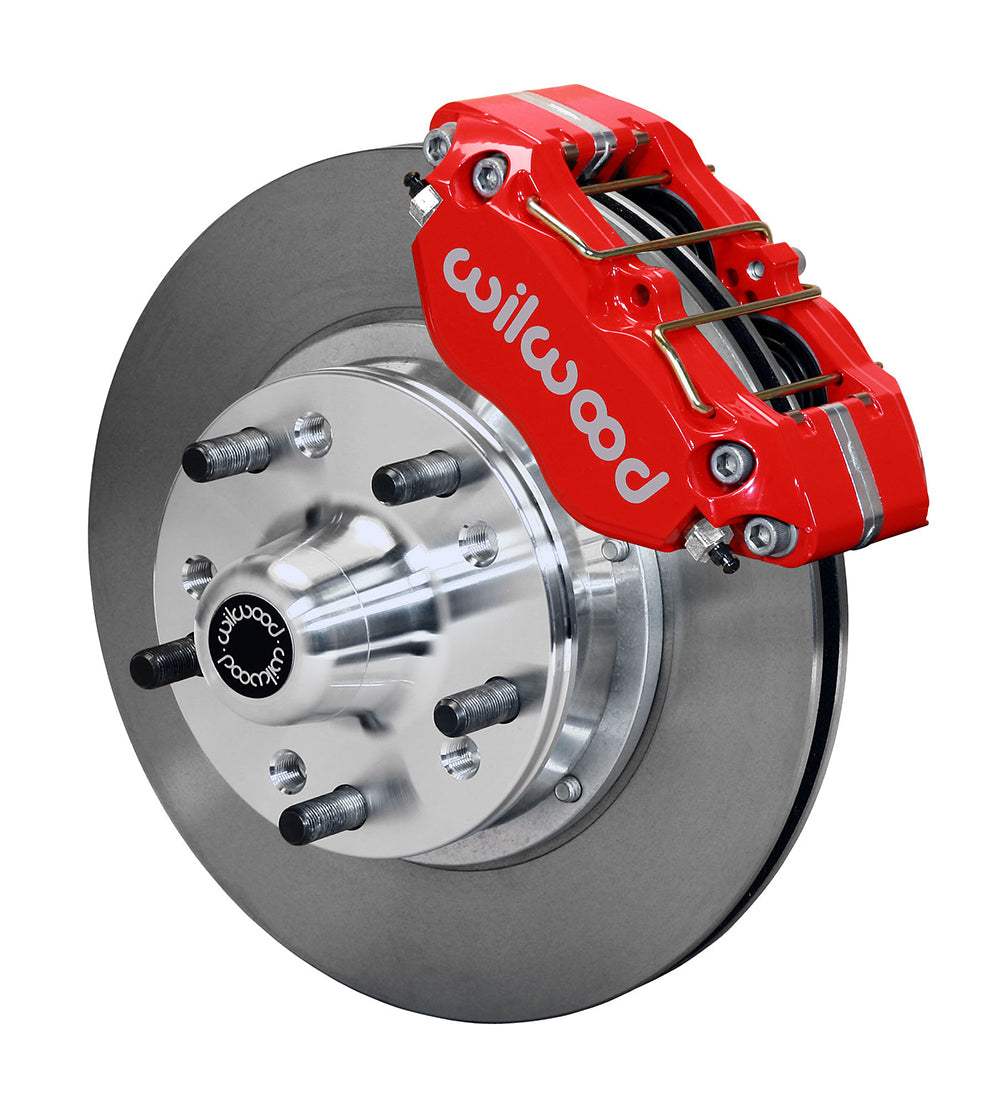

Wilwood Dynapro Dust-Boot Pro Series Front Brake Kit — 67-69 Camaro, 64-72 Nova, Chevelle — 140-13202-R

DP-DB Front Kit,11.00",Red — 67-69 Camaro, 64-72 Nova, Chevelle.

Wilwood part number: 140-13202-R.

• OE Hub Offset:: +.19
• Spindle Type:: Drop Spindle Factory Disc Spindle Factory Drum Spindle
• Mount Type:: Lug
• Caliper Type:: 4 - Red Powder Coat
• Rotor Diameter:: 11.00
• Min Wheel Diameter Req'd*:: 14
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-11482-RD
• Right Hand - Part No:: 120-11482-RD
• Type:: Dynapro Dust-Boot
• Finish Color:: Red Powder Coat
• Piston Count:: 4
• Piston 1 Bore (in):: 1.75
• Piston 2 Bore (in):: 1.75
• Piston Area (In²):: 4.80
• Piston Type:: Aluminum
• Mount Type:: Lug
• Brake Pad Plate:: 7812
• Brake Pad Area (In²):: 6.36
• Brake Pad Volume (In³):: 2.1

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
