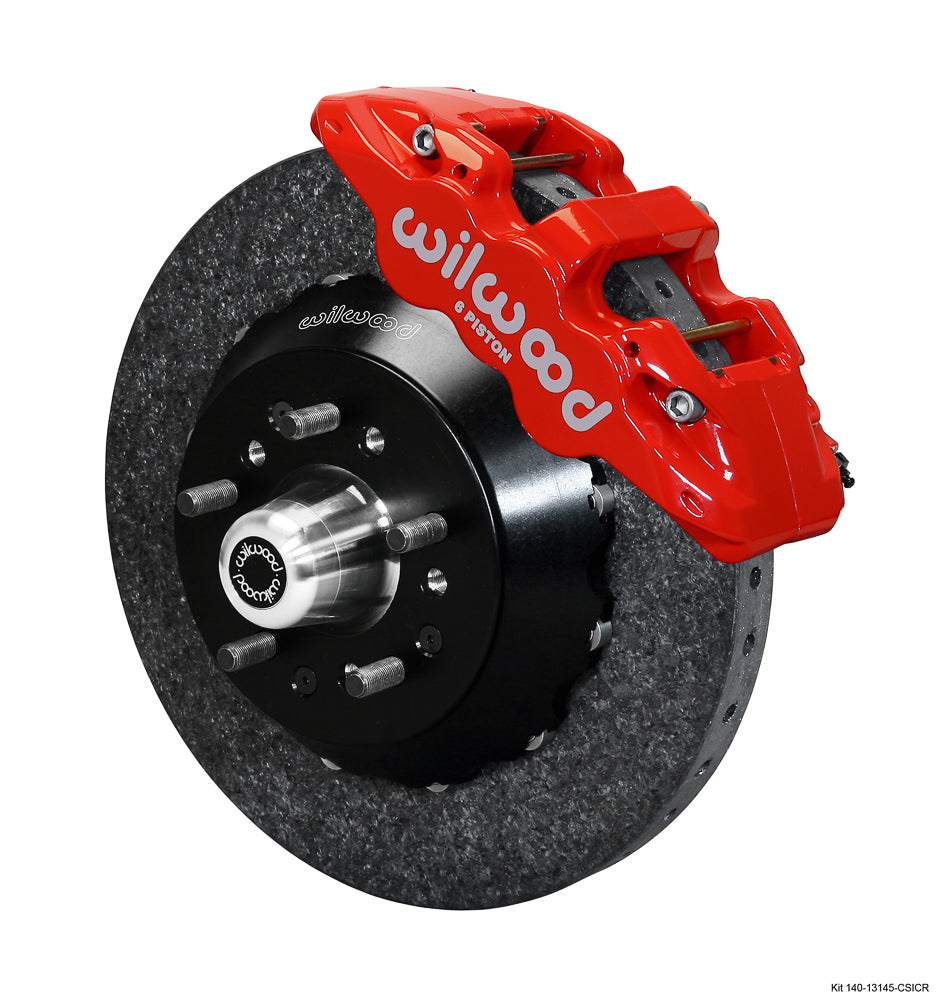

Wilwood AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit — WWE ProSpindle — 140-13145-CSICR

AERO6 Dynamic Front Kit,14.00" C/SiC Rotor,Red — WWE ProSpindle.

Wilwood part number: 140-13145-CSICR.

• OE Hub Offset:: +.68
• Spindle Type:: Factory Disc Spindle
• Mount Type:: Radial
• Caliper Type:: 6 - Red Powder Coat
• Rotor Diameter:: 14.00
• Min Wheel Diameter Req'd*:: 18
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-13290-RD
• Right Hand - Part No:: 120-13289-RD
• Type:: AERO6
• Finish Color:: Red Powder Coat
• Piston Count:: 6
• Piston 1 Bore (in):: 1.62
• Piston 2 Bore (in):: 1.12
• Piston 3 Bore (in):: 1.12
• Piston Area (In²):: 4.04
• Piston Type:: Stainless
• Mount Type:: Radial
• Brake Pad Plate:: 6617
• Brake Pad Area (In²):: 11.1

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
