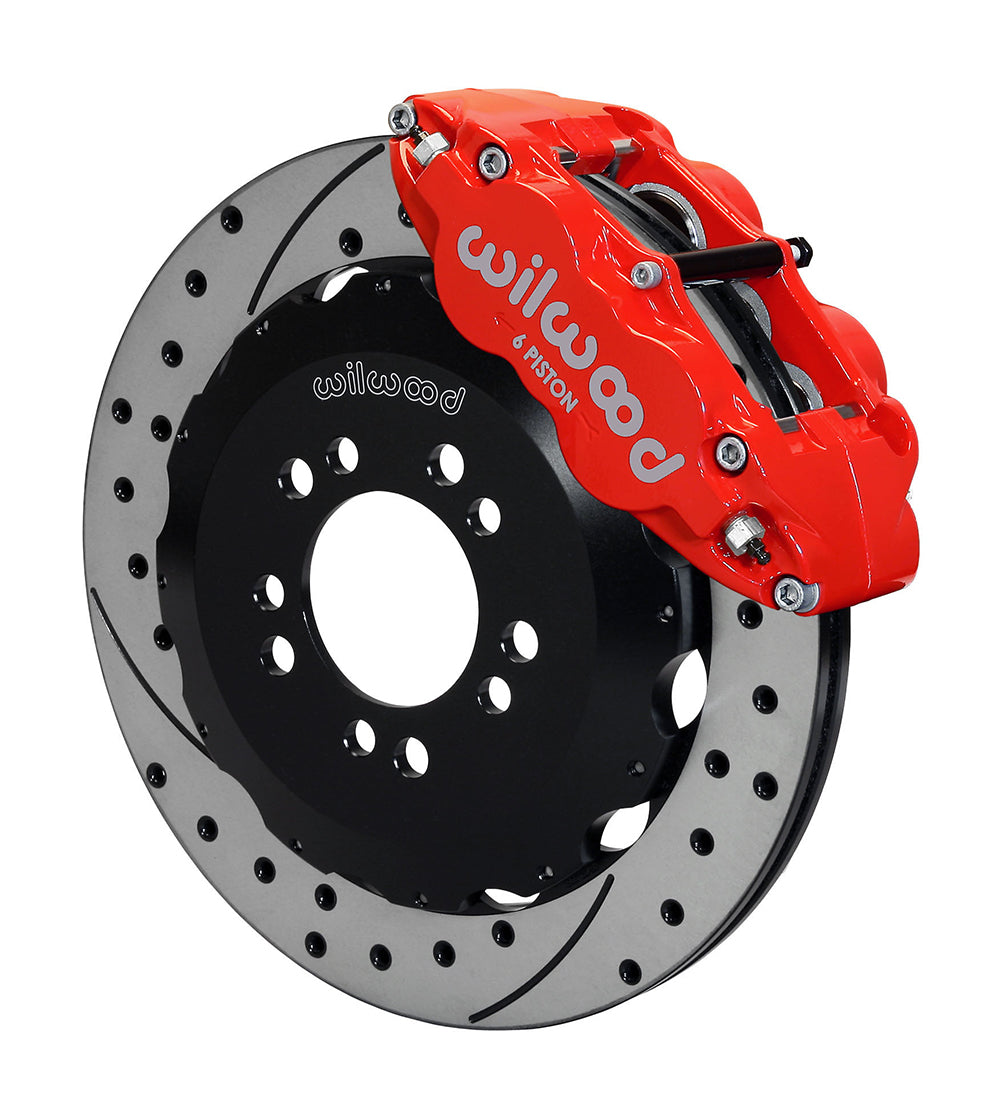

Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) — 2013-Up Ford Focus ST w/ Lines — 140-13019-DR

FNSL6R Front Hat Kit,14.00", Drill, Red — 2013-Up Ford Focus ST w/ Lines.

Wilwood part number: 140-13019-DR.

• Spindle Type:: Factory Disc Spindle
• Mount Type:: Radial
• Caliper Type:: 6 - Red Powder Coat
• Rotor Diameter:: 14.00
• Min Wheel Diameter Req'd*:: 18
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-11781-RD
• Right Hand - Part No:: 120-11780-RD
• Type:: Forged Narrow Superlite 6R
• Finish Color:: Red Powder Coat
• Piston Count:: 6
• Piston 1 Bore (in):: 1.62
• Piston 2 Bore (in):: 1.12
• Piston 3 Bore (in):: 1.12
• Piston Area (In²):: 4.04
• Piston Type:: Stainless
• Mount Type:: Radial
• Brake Pad Plate:: 7416
• Brake Pad Area (In²):: 8.2
• Brake Pad Volume (In³):: 3.8

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
