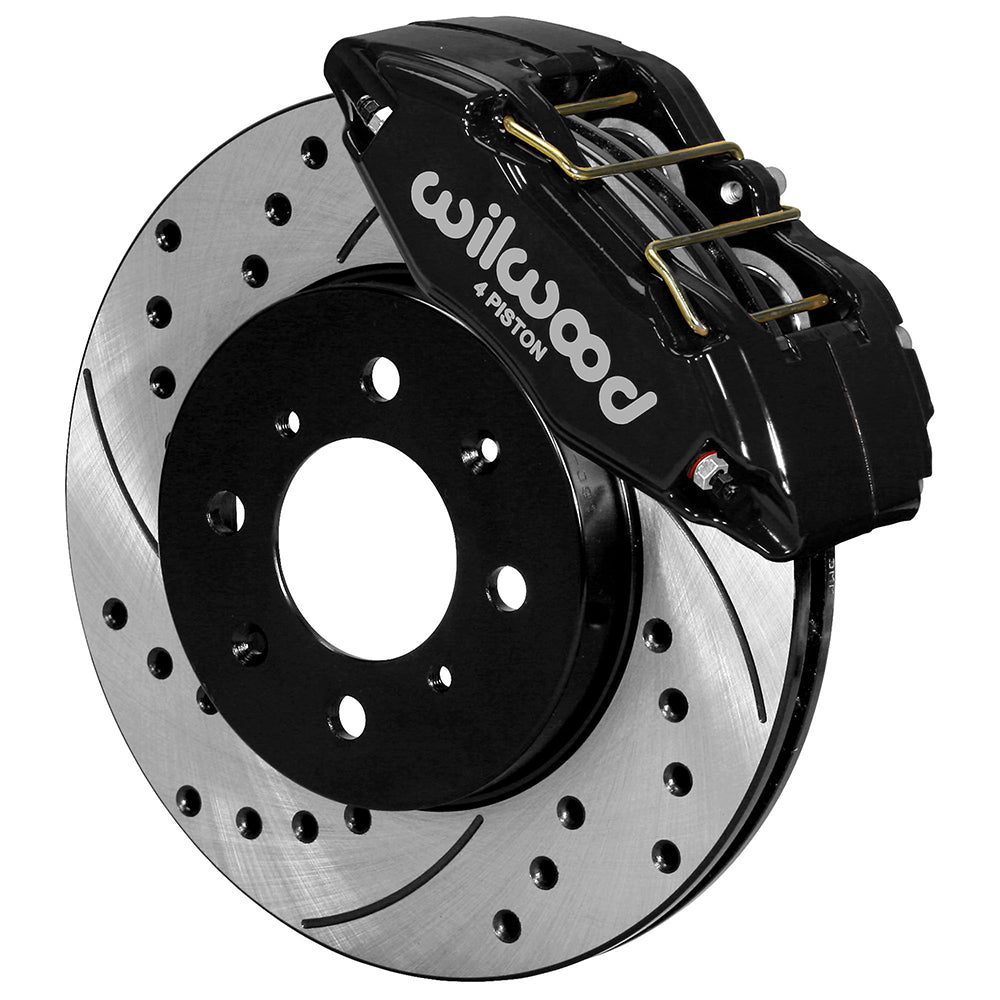

Wilwood Forged DPHA Front Caliper and Rotor Kit — Honda / Acura w/ 262mm OE Rotor — 140-12996-D

DPHA Front Caliper & Rotor Kit, Drilled — Honda / Acura w/ 262mm OE Rotor.

Wilwood part number: 140-12996-D.

• OE Hub Offset:: .00
• Spindle Type:: Factory Disc Spindle
• Mount Type:: Lug
• Caliper Type:: 4 - Black Powder Coat
• Rotor Diameter:: 10.32
• Min Wheel Diameter Req'd*:: 15
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-12949-BK
• Right Hand - Part No:: 120-12949-BK
• Type:: Forged DPHA
• Finish Color:: Black Powder Coat
• Piston Count:: 4
• Piston 1 Bore (in):: 1.62
• Piston 2 Bore (in):: 1.62
• Piston Area (In²):: 4.12
• Piston Type:: Stainless
• Mount Type:: Lug
• Brake Pad Plate:: 7812
• Brake Pad Area (In²):: 6.36
• Brake Pad Volume (In³):: 2.1

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
