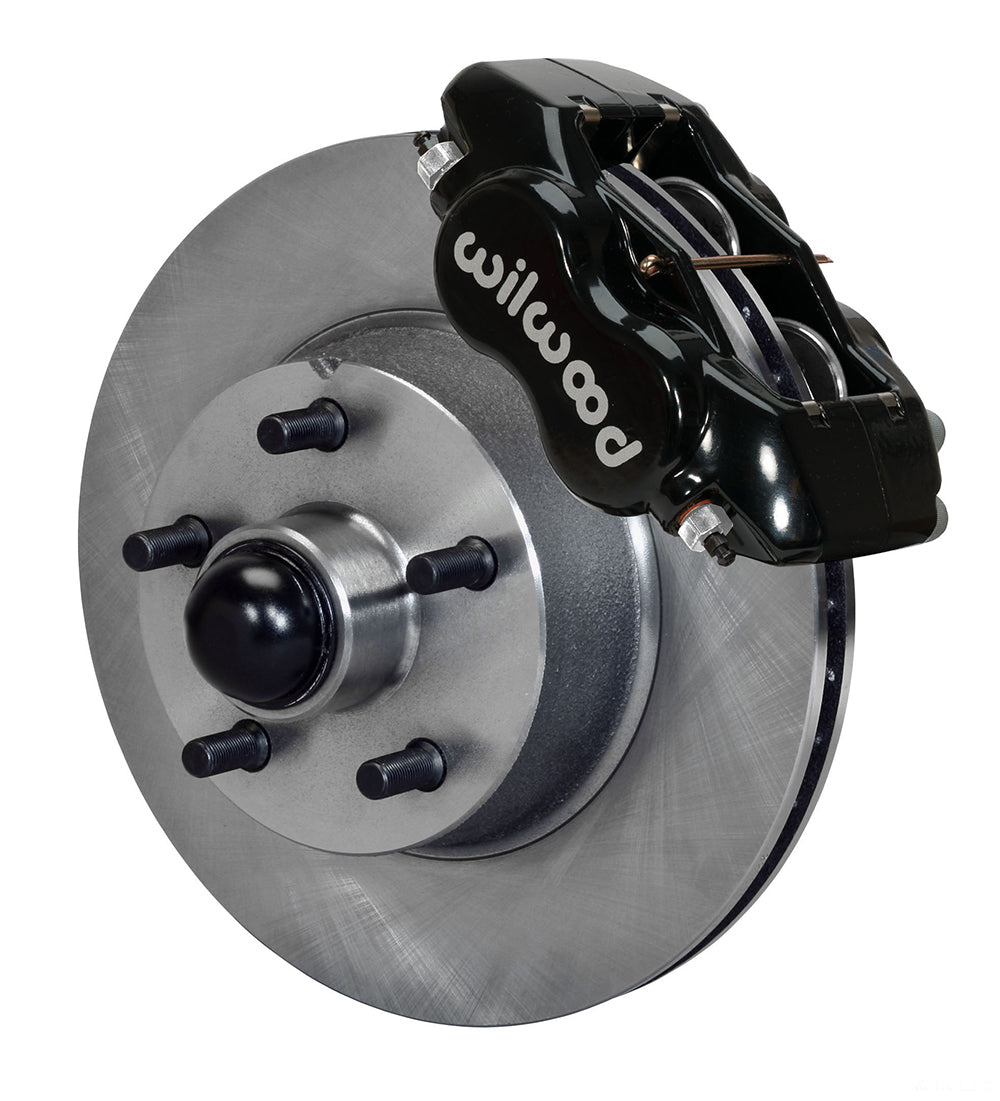

Wilwood Classic Series Dynalite Front Brake Kit — Ford 1949-1953 — 140-12913

FDLI Front Kit,11.28" 1 PC Rotor&Hub — Ford 1949-1953.

Wilwood part number: 140-12913.

• Spindle Type:: Factory Drum Spindle
• Mount Type:: Lug
• Caliper Type:: 4 - Black Powder Coat
• Rotor Diameter:: 11.28
• Min Wheel Diameter Req'd*:: 15
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-13845-BK
• Right Hand - Part No:: 120-13845-BK
• Type:: Forged Dynalite Internal
• Finish Color:: Black Powder Coat
• Piston Count:: 4
• Piston 1 Bore (in):: 1.75
• Piston 2 Bore (in):: 1.75
• Piston Area (In²):: 4.80
• Piston Type:: Stainless
• Mount Type:: Lug
• Brake Pad Plate:: 7112
• Brake Pad Area (In²):: 6.36
• Brake Pad Volume (In³):: 2.1
• Pad Compound:: BP-10

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
