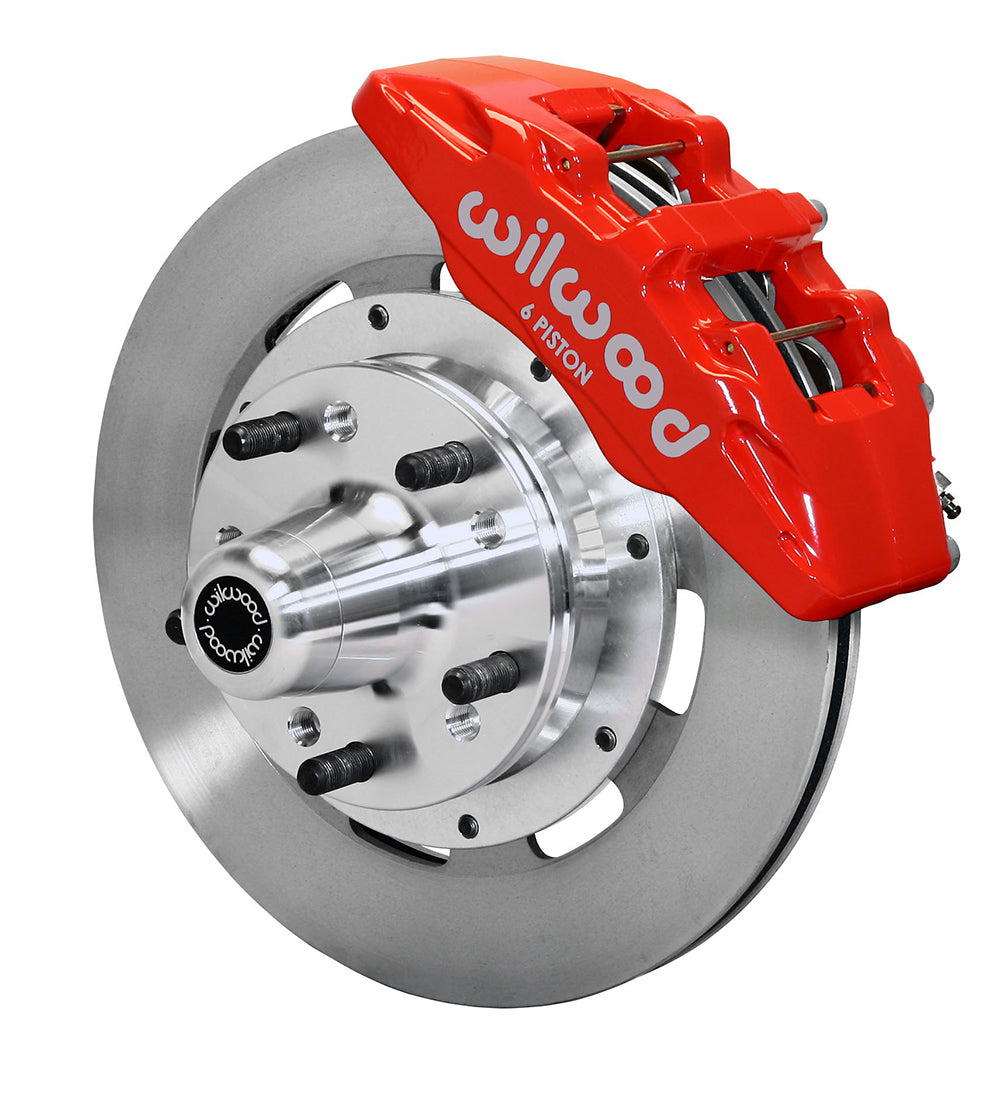

Wilwood Forged Dynapro 6 Big Brake Front Brake Kit (Hub) — 80-87 GM "G" Body — 140-12837-R

DP6A Front Hub Kit,12.19", Drilled, Red — 80-87 GM "G" Body.

Wilwood part number: 140-12837-R.

• OE Hub Offset:: .00
• Spindle Type:: Factory Disc Spindle
• Mount Type:: Lug
• Caliper Type:: 6 - Red Powder Coat
• Rotor Diameter:: 12.19
• Min Wheel Diameter Req'd*:: 15
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-13429-RD
• Right Hand - Part No:: 120-13428-RD
• Type:: Dynapro 6
• Finish Color:: Red Powder Coat
• Piston Count:: 6
• Piston 1 Bore (in):: 1.62
• Piston 2 Bore (in):: 1.38
• Piston 3 Bore (in):: 1.38
• Piston Area (In²):: 5.06
• Piston Type:: Stainless
• Mount Type:: Lug
• Brake Pad Plate:: 6712
• Brake Pad Area (In²):: 7.3

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
