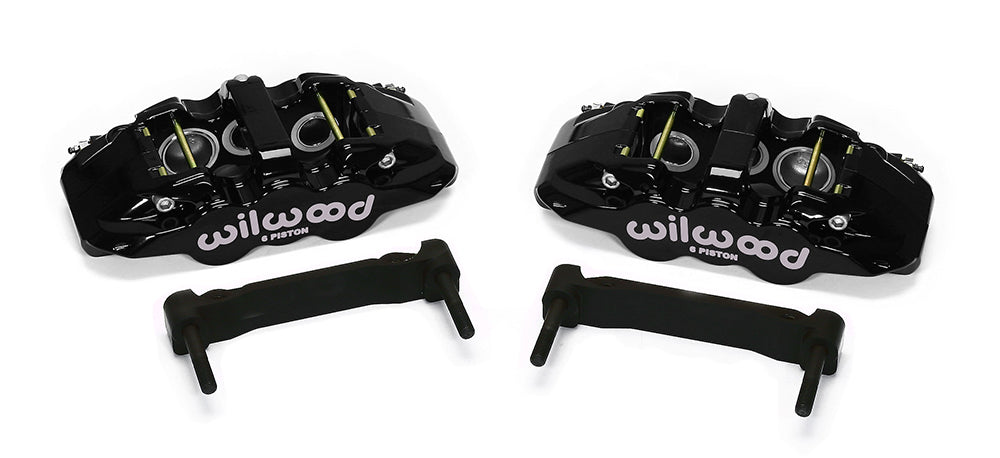

Wilwood AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6 — 97-13 C5/C6 Corvette w/ OEM HD/Z51 Rotors — 140-12629

AERO6 Front Caliper & Bracket Kit - Black — 97-13 C5/C6 Corvette w/ OEM HD/Z51 Rotors.

Wilwood part number: 140-12629.

• Spindle Type:: Drop Spindle Factory Disc Spindle
• Mount Type:: Radial
• Caliper Type:: 6 - Black Powder Coat
• Min Wheel Diameter Req'd*:: 18
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-13290-BK
• Right Hand - Part No:: 120-13289-BK
• Type:: AERO6
• Finish Color:: Black Powder Coat
• Piston Count:: 6
• Piston 1 Bore (in):: 1.62
• Piston 2 Bore (in):: 1.12
• Piston 3 Bore (in):: 1.12
• Piston Area (In²):: 4.04
• Piston Type:: Stainless
• Mount Type:: Radial
• Brake Pad Plate:: 6617
• Brake Pad Area (In²):: 11.1
• Brake Pad Volume (In³):: 5.2
• Pad Compound:: BP-20

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
