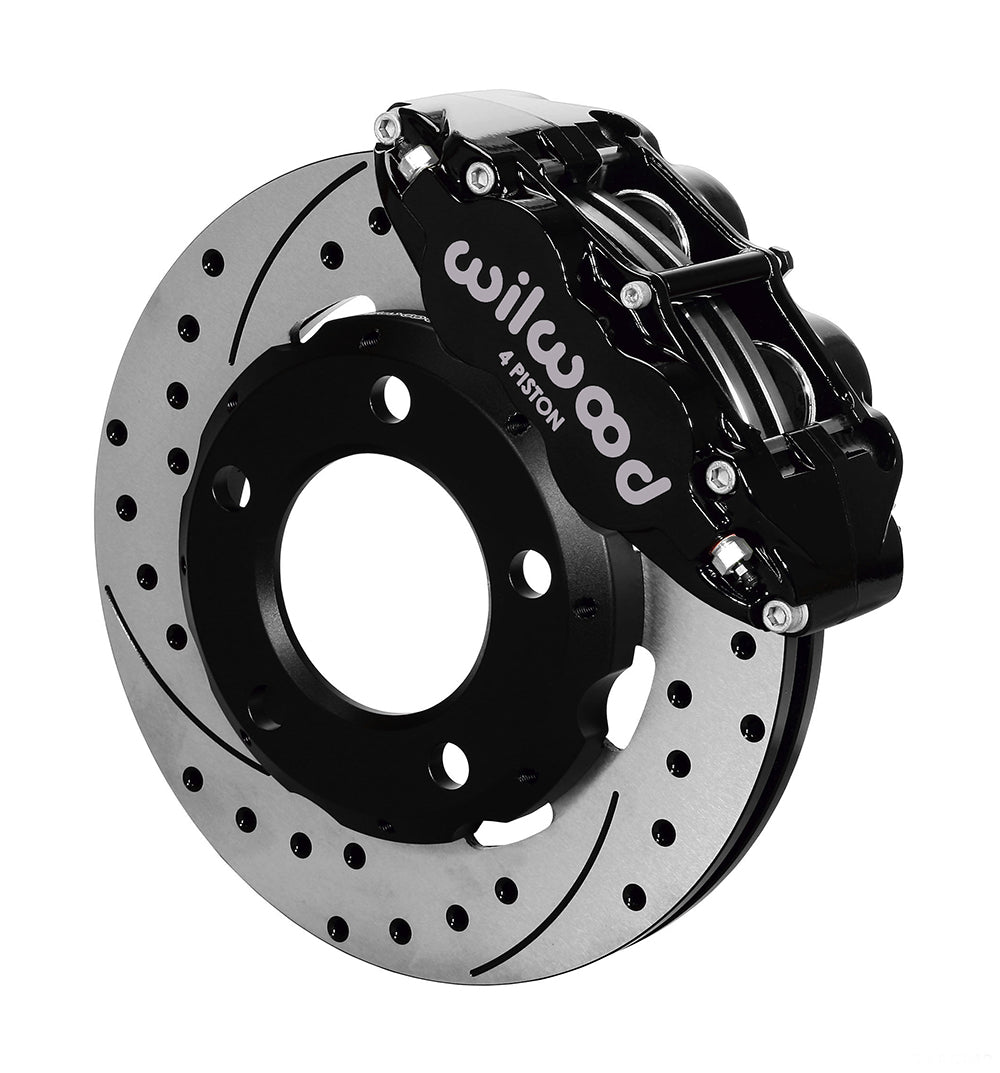

Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) — 82-86 Jeep CJ — 140-12613-D

FNSL4R Front Kit,12.19", Drilled — 82-86 Jeep CJ.

Wilwood part number: 140-12613-D.

• Spindle Type:: Factory Disc Spindle
• Mount Type:: Radial
• Caliper Type:: 4 - Black Powder Coat
• Rotor Diameter:: 12.19
• Min Wheel Diameter Req'd*:: 16
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-11784-BK
• Right Hand - Part No:: 120-11784-BK
• Type:: Forged Narrow Superlite 4R
• Finish Color:: Black Powder Coat
• Piston Count:: 4
• Piston 1 Bore (in):: 1.75
• Piston 2 Bore (in):: 1.75
• Piston Area (In²):: 4.80
• Piston Type:: Stainless
• Mount Type:: Radial
• Brake Pad Plate:: 7416
• Brake Pad Area (In²):: 8.2
• Brake Pad Volume (In³):: 3.8
• Pad Compound:: BP-10

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
