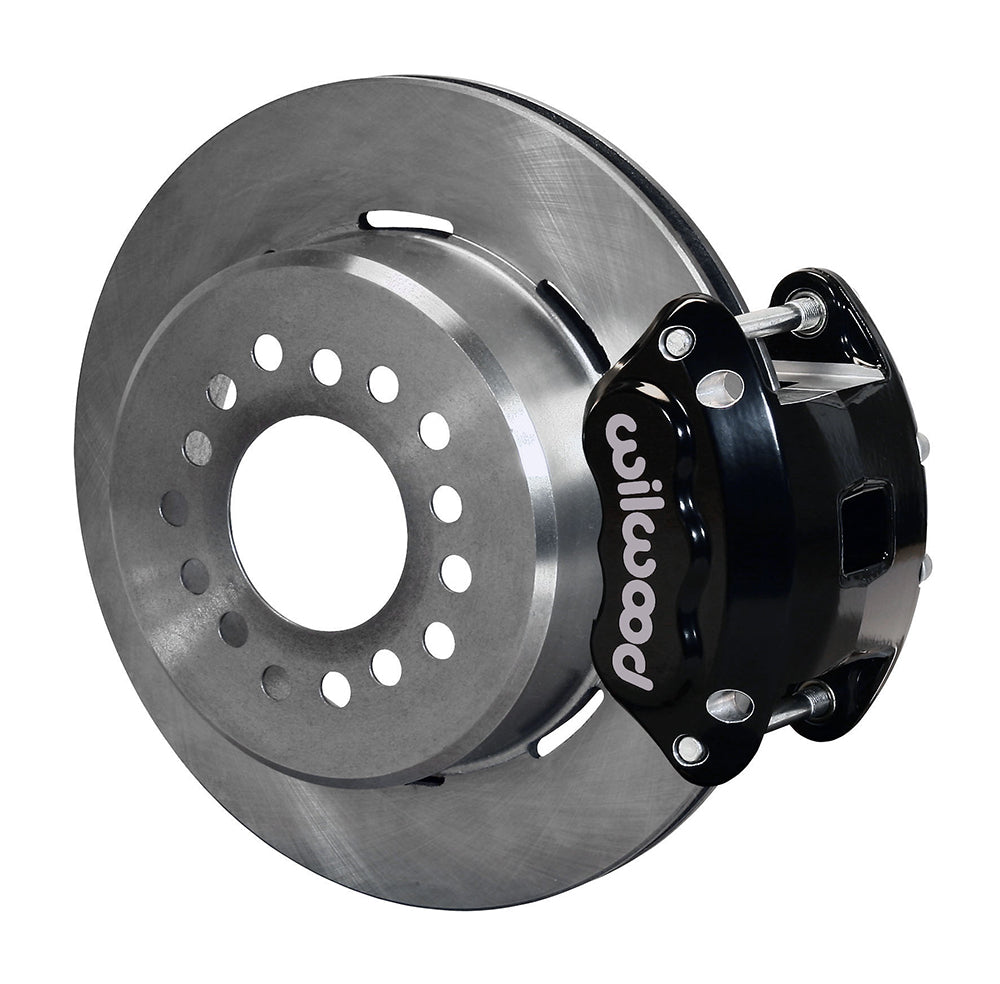

Wilwood D154 Rear Parking Brake Kit — Jeep Dana 35 2.56 Off 5-lug w/ lines — 140-12567

D154 P/S Park Brake Kit — Jeep Dana 35 2.56 Off 5-lug w/ lines.

Wilwood part number: 140-12567.

• Rear End Axle:: Dana 35
• Axle Offset:: 2.56
• Mount Type:: Floating
• Caliper Type:: 2 - Black Powder Coat
• Rotor Diameter:: 12.19
• Min Wheel Diameter Req'd*:: 16
• Confirm The Configuration! Dana 35 Flange: Confirm Offset Measurement! Axle Flange Cross-Section
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-11875-BK
• Right Hand - Part No:: 120-11875-BK
• Type:: D154
• Finish Color:: Black Powder Coat
• Piston Count:: 2
• Piston 1 Bore (in):: 1.12
• Piston 2 Bore (in):: 1.12
• Piston Area (In²):: 1.98
• Piston Type:: Stainless
• Mount Type:: Floating
• Brake Pad Plate:: D154
• Brake Pad Area (In²):: 8.7

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
