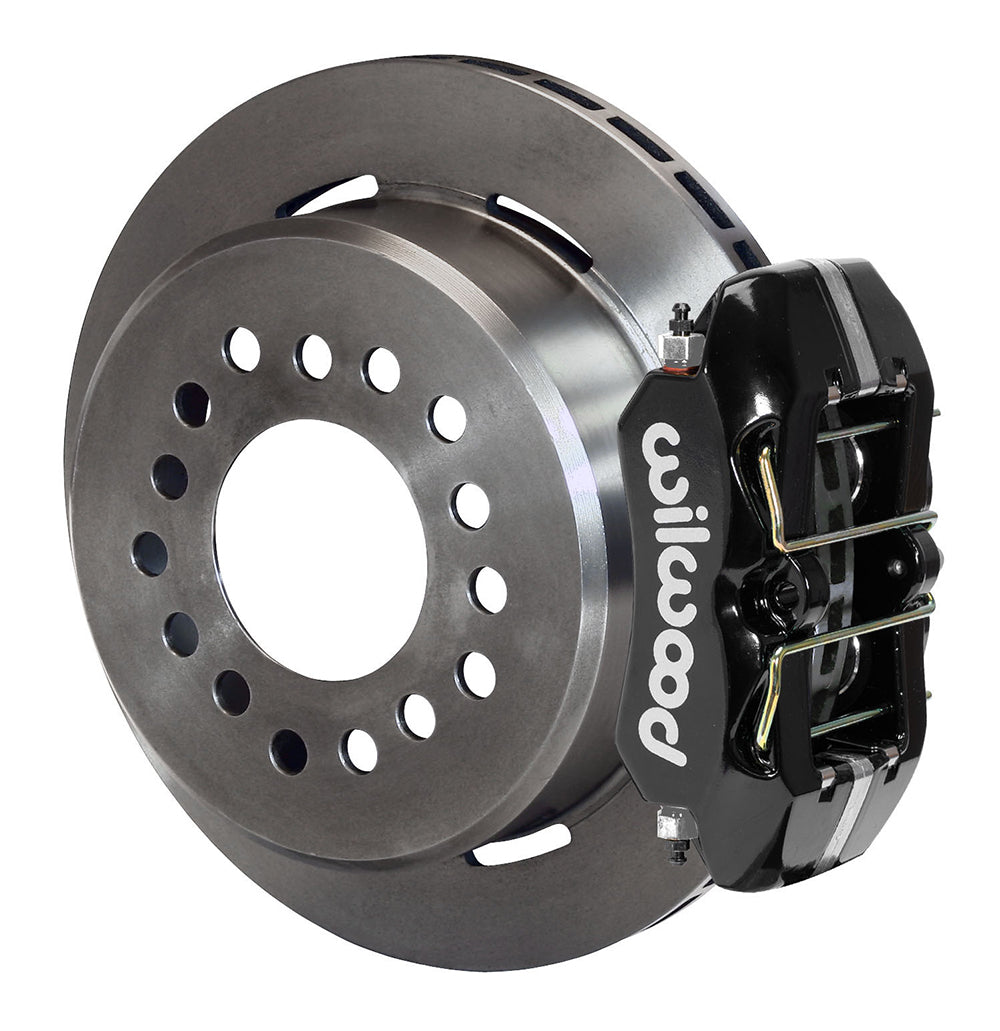

Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit — Mopar/Dana 2.50" Off, w/Snap Ring Brng — 140-11386

FDP-LP 11.00" P-Brake Kit — Mopar/Dana 2.50" Off, w/Snap Ring Brng.

Wilwood part number: 140-11386.

• Rear End Axle:: Mopar/Dana
• Axle Offset:: 2.50
• Mount Type:: Lug
• Caliper Type:: 4 - Black Powder Coat
• Rotor Diameter:: 11.00
• Min Wheel Diameter Req'd*:: 14
• Confirm The Configuration! Mopar/Dana Flange: Confirm Offset Measurement! Axle Flange Cross-Section
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-16190-BK
• Right Hand - Part No:: 120-16190-BK
• Type:: Forged Dynapro Low Profile
• Finish Color:: Black Powder Coat
• Piston Count:: 4
• Piston 1 Bore (in):: 1.38
• Piston 2 Bore (in):: 1.38
• Piston Area (In²):: 3.00
• Piston Type:: Stainless
• Mount Type:: Lug
• Brake Pad Plate:: 4812
• Brake Pad Area (In²):: 5.1

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
