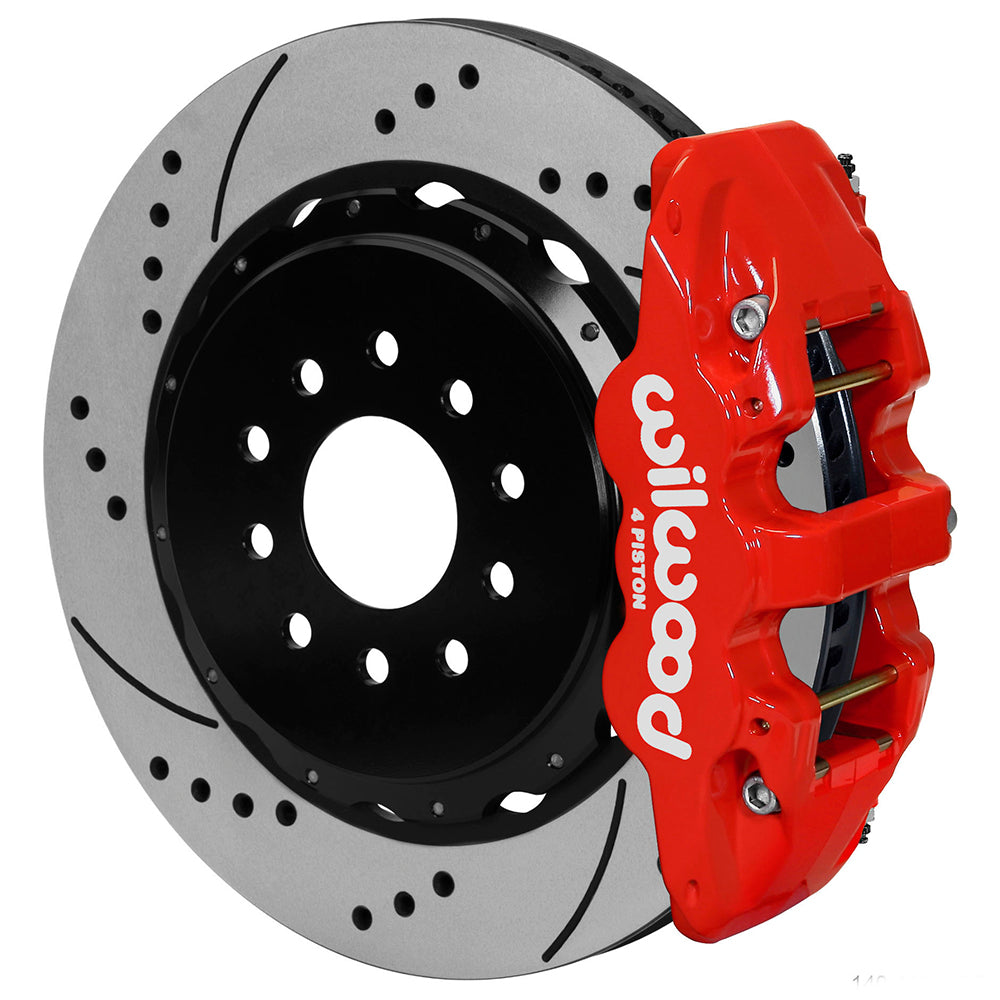

Wilwood AERO4 Big Brake Rear Brake Kit For OE Parking Brake — 97-04 Corvette C5/Z06 05-13 C6 — 140-11119-DR

AERO4 Rear Kit,14.00", Drilled, Red — 97-04 Corvette C5/Z06 05-13 C6.

Wilwood part number: 140-11119-DR.

• Rear End Axle:: OEM
• Axle Offset:: 0.00
• Mount Type:: Radial
• Caliper Type:: 4 - Red Powder Coat
• Rotor Diameter:: 14.00
• Min Wheel Diameter Req'd*:: 18
• Confirm The Configuration! OEM Flange: Confirm Offset Measurement! Axle Flange Cross-Section
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-13338-RD
• Right Hand - Part No:: 120-13338-RD
• Type:: AERO4
• Finish Color:: Red Powder Coat
• Piston Count:: 4
• Piston 1 Bore (in):: 1.12
• Piston 2 Bore (in):: 1.12
• Piston Area (In²):: 1.98
• Piston Type:: Stainless
• Mount Type:: Radial
• Brake Pad Plate:: 6617
• Brake Pad Area (In²):: 11.1

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
