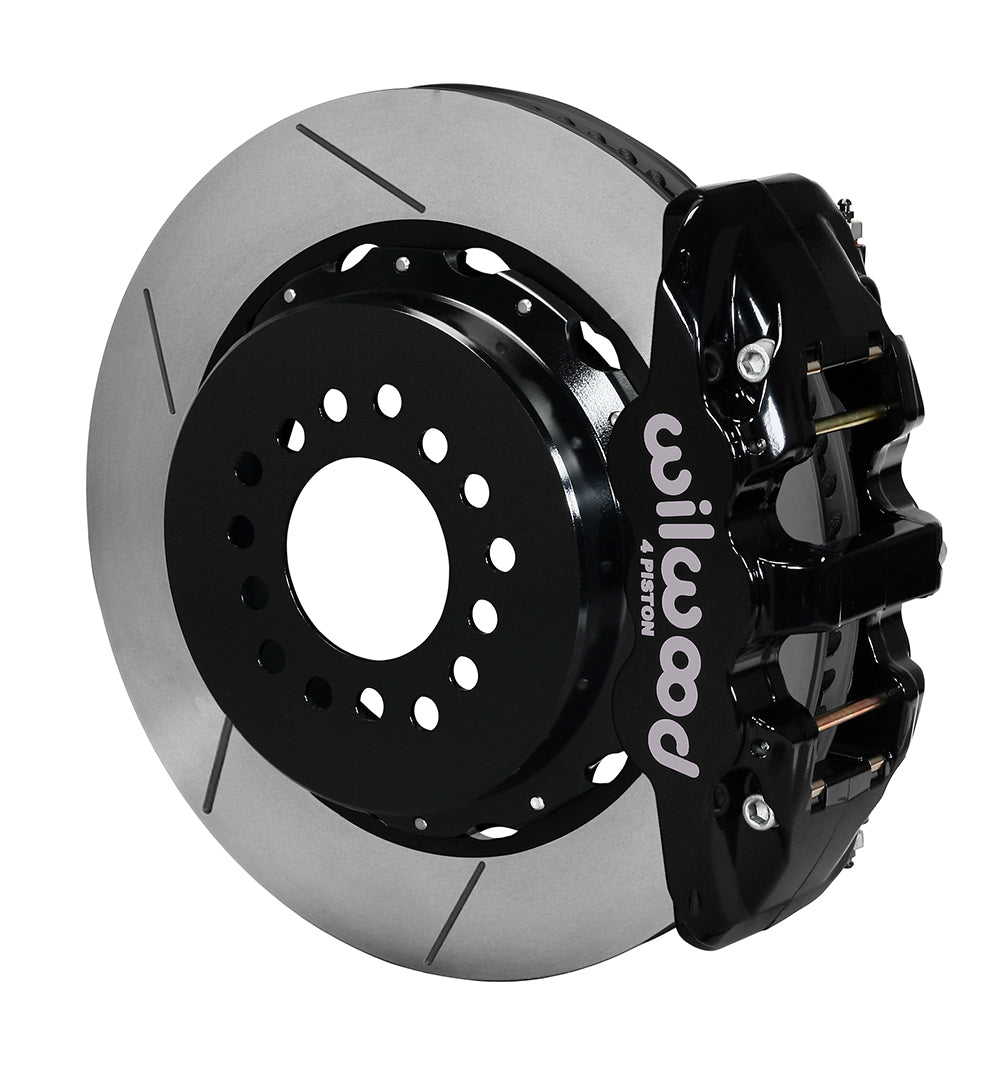

Wilwood AERO4 Big Brake Rear Parking Brake Kit — Chevy 12 Bolt w/ C-Clips — 140-10943

AERO4 Rear P-Brake Kit,14.00" — Chevy 12 Bolt w/ C-Clips.

Wilwood part number: 140-10943.

• Rear End Axle:: 12 Bolt
• Axle Offset:: 2.81
• Mount Type:: Radial
• Caliper Type:: 4 - Black Powder Coat
• Rotor Diameter:: 14.00
• Min Wheel Diameter Req'd*:: 18
• Confirm The Configuration! 12 Bolt Flange: Confirm Offset Measurement! Axle Flange Cross-Section
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-13338-BK
• Right Hand - Part No:: 120-13338-BK
• Type:: AERO4
• Finish Color:: Black Powder Coat
• Piston Count:: 4
• Piston 1 Bore (in):: 1.12
• Piston 2 Bore (in):: 1.12
• Piston Area (In²):: 1.98
• Piston Type:: Stainless
• Mount Type:: Radial
• Brake Pad Plate:: 6617
• Brake Pad Area (In²):: 11.1

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
