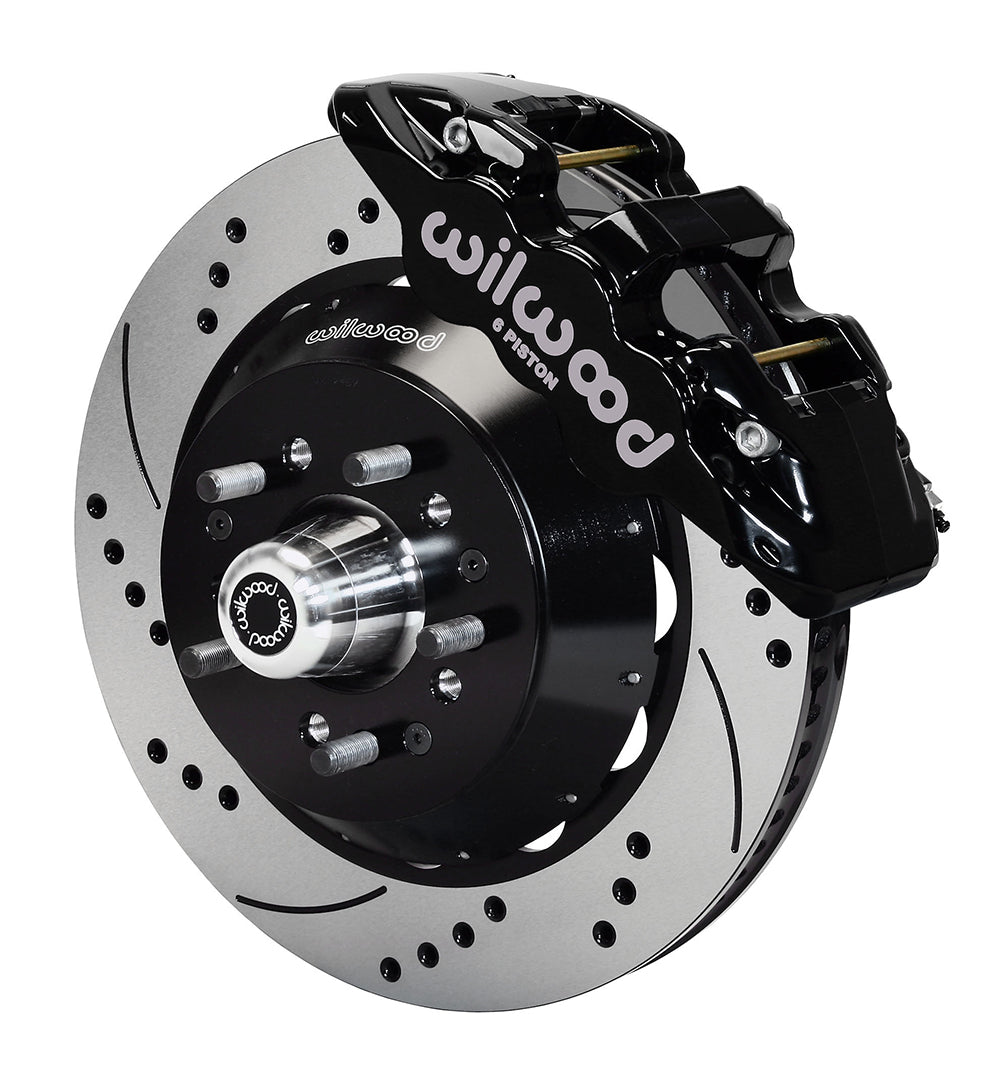

Wilwood AERO6 Big Brake Front Brake Kit — 67-69 Camaro, 64-72 Nova, Chevelle — 140-10920-D

AERO6 Front Hub Kit,14.00, Drilled — 67-69 Camaro, 64-72 Nova, Chevelle.

Wilwood part number: 140-10920-D.

• OE Hub Offset:: +.38
• Spindle Type:: Drop Spindle Factory Disc Spindle Factory Drum Spindle
• Mount Type:: Radial
• Caliper Type:: 6 - Black Powder Coat
• Rotor Diameter:: 14.00
• Min Wheel Diameter Req'd*:: 18
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-13290-BK
• Right Hand - Part No:: 120-13289-BK
• Type:: AERO6
• Finish Color:: Black Powder Coat
• Piston Count:: 6
• Piston 1 Bore (in):: 1.62
• Piston 2 Bore (in):: 1.12
• Piston 3 Bore (in):: 1.12
• Piston Area (In²):: 4.04
• Piston Type:: Stainless
• Mount Type:: Radial
• Brake Pad Plate:: 6617
• Brake Pad Area (In²):: 11.1

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
