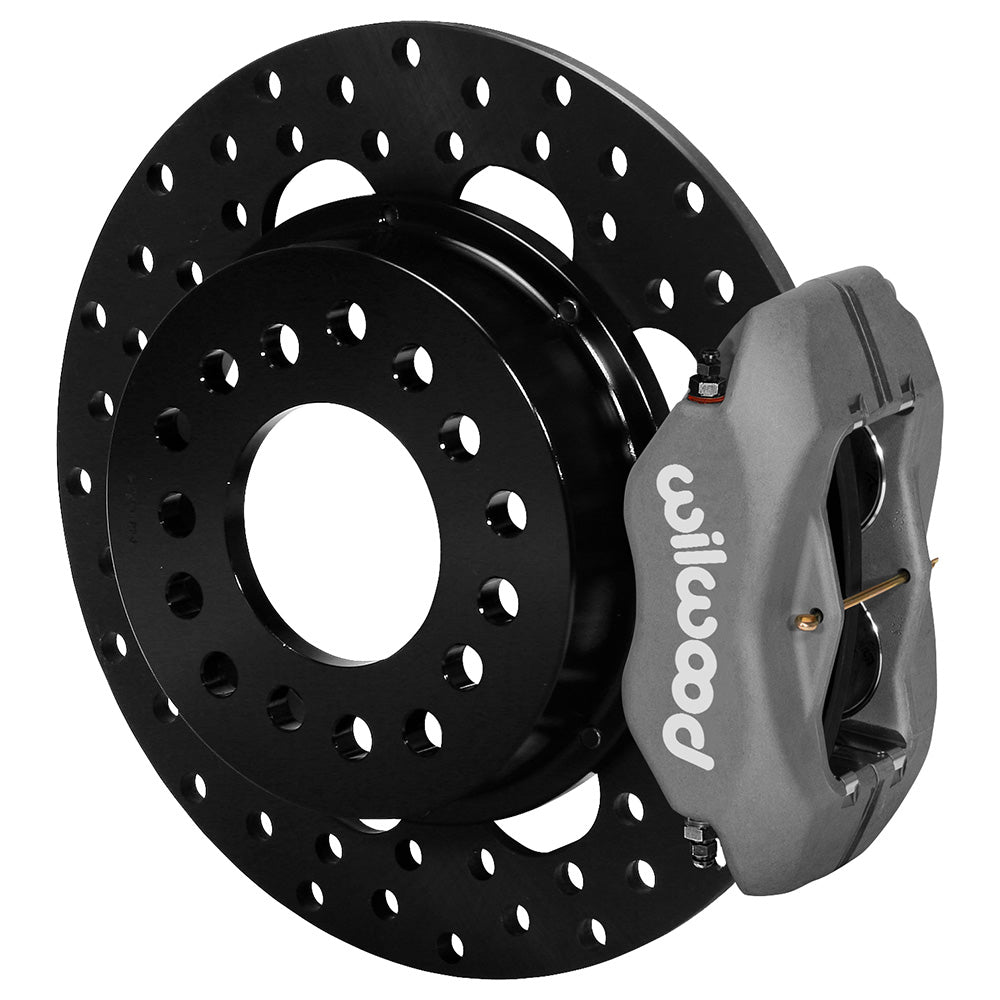

Wilwood Forged Dynalite Rear Drag Brake Kit — Chevy 12 Bolt w/ C-Clips — 140-0263-BD

FDL Rear Drag Kit, Drilled Rotor — Chevy 12 Bolt w/ C-Clips.

Wilwood part number: 140-0263-BD.

• Rear End Axle:: 12 Bolt
• Axle Offset:: 2.91
• Mount Type:: Lug
• Caliper Type:: 4 - Type III Anodize
• Rotor Diameter:: 11.44
• Min Wheel Diameter Req'd*:: 15
• Confirm The Configuration! 12 Bolt Flange: Confirm Offset Measurement! Axle Flange Cross-Section
• Wheel Clearance: Assembly Instructions
• Left Hand - Part No:: 120-13843
• Right Hand - Part No:: 120-13843
• Type:: Forged Dynalite Internal
• Finish Color:: Type III Anodize
• Piston Count:: 4
• Piston 1 Bore (in):: 1.75
• Piston 2 Bore (in):: 1.75
• Piston Area (In²):: 4.80
• Piston Type:: Stainless
• Mount Type:: Lug
• Brake Pad Plate:: 7112
• Brake Pad Area (In²):: 6.36

Confirm vehicle fitment, mounting dimensions and component compatibility before ordering. Review the manufacturer’s installation instructions.

Manufacturer specifications and installation documents
