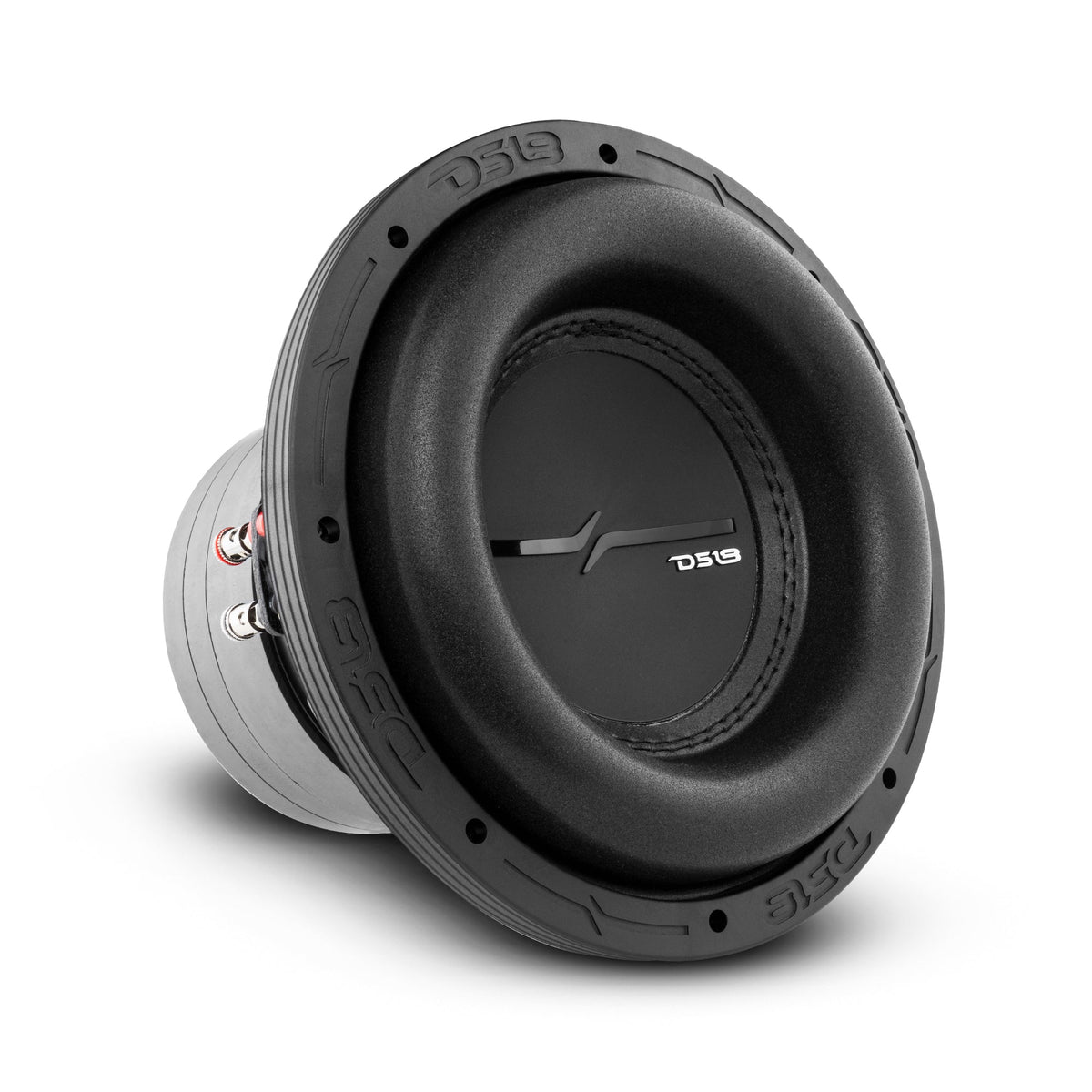

DS18 ZXI8.4D ZXI 8" High Excursion Subwoofer Quad Stacked Magnets | 600W RMS DVC 4-Ohm

DS18 ZXI8.4D ZXI 8" High Excursion Subwoofer Quad Stacked Magnets | 600W RMS DVC 4-Ohm

• Nominal Diameter: 8" / 203.2mm
• Nominal Impedance: 4 + 4 ohms
• RMS Power Handling: 600w
• MAX Power Handling: 1200w
• Sensitivity (1w/1m): 86dB
• Frequency Response: 25-880Hz
• Recommended Lo Pass Crossover: 90Hz
• Voice Coil Diameter: 2" / 50.8mm
• Voice Coil Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Non-Pressed Paper
• Dust Cap Material: PPI
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color/Finish: Black Sandblasted
• Magnet Material: Ferrite

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
