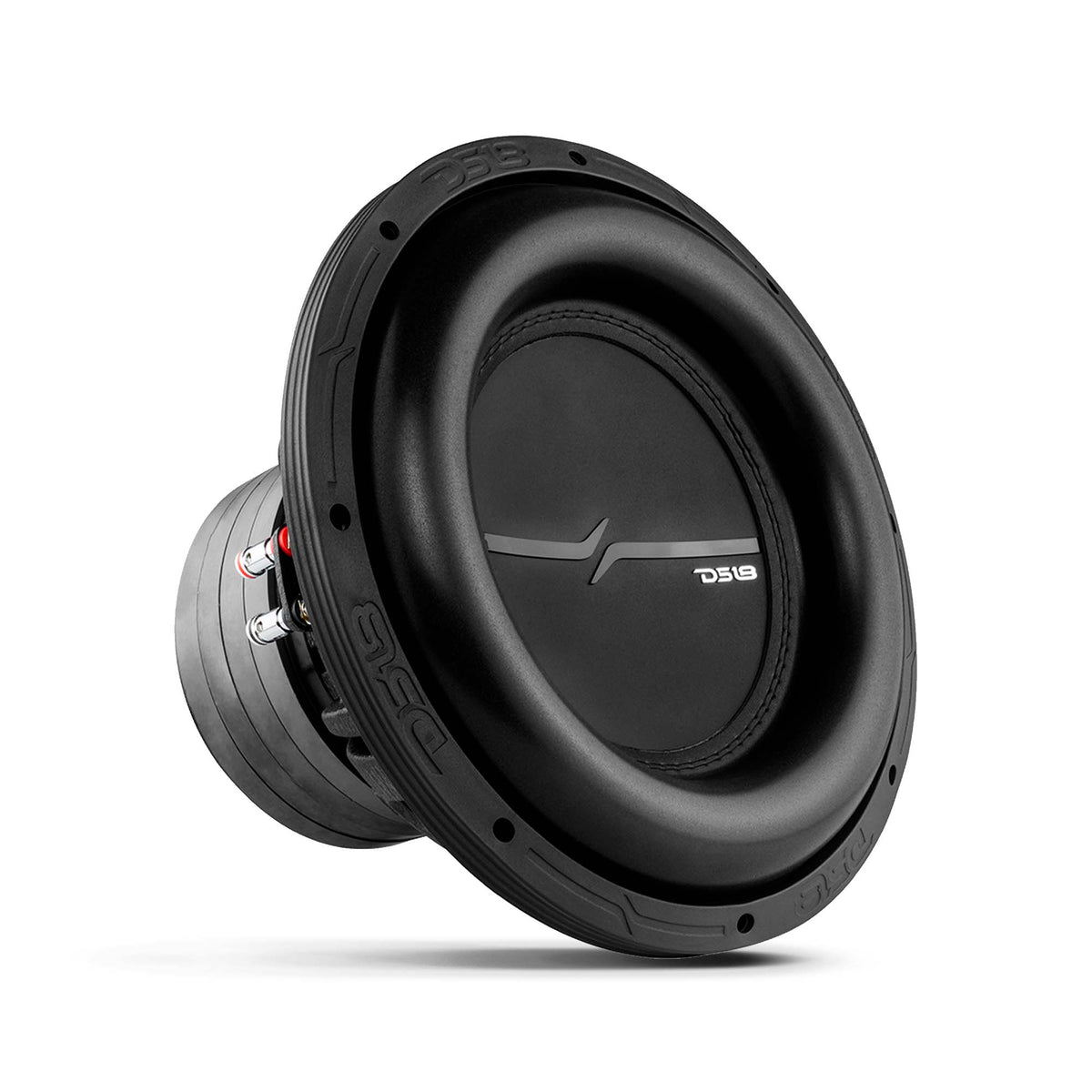

DS18 ZXI12.4D ZXI 12" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 4-Ohm

DS18 ZXI12.4D ZXI 12" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 4-Ohm

• Nominal Diameter: 12"
• Nominal Impedance: 4 + 4 Ohms
• RMS Power Handling: 1000 Watts
• MAX Power Handling: 2000 Watts
• Voice Coil Diameter: 3" (76.5mm)
• Voice Coil Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Non-Pressed Paper
• Dust Cap Material: PPI
• Motor: Ferrite
• Overall depth: 9.13"
• Mounting depth: 7.55"
• Overall width: 12.55"
• Cutout Diameter: 11.1"
• XMAX: 32mm one way 64mm total
• FS: 31.4Hz

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.
