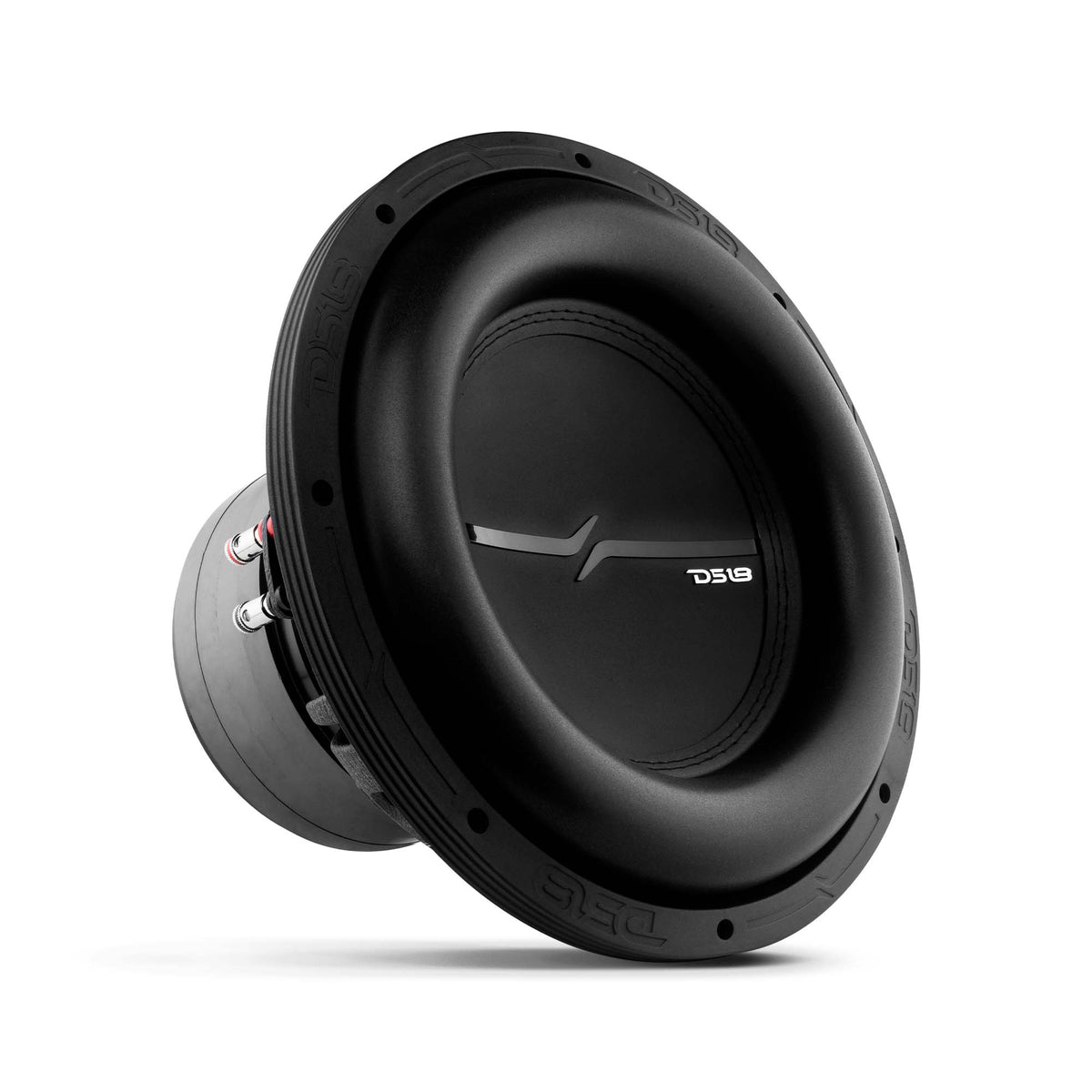

DS18 ZXI12.2D ZXI 12" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 2-Ohm

DS18 ZXI12.2D ZXI 12" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 2-Ohm

• Nominal Diameter: 12" / 304.8 mm
• Nominal Impedance: 2 + 2 Ohms
• RMS Power Handling: 1000 W
• MAX Power Handling: 2000 W
• Sensitivity (1w/1m): 89.2 dB
• Frequency Response: 15Hz - 1.7KHz
• Recommended Lo Pass Crossover: 90 Hz
• Voice Coil Diameter: 3” / 76.5 mm
• Voice Coil Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Non Pressed Paper
• Dust Cap Material: PPI
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color | Finish: Black Sandblasted
• Magnet Material: Ferrite

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
