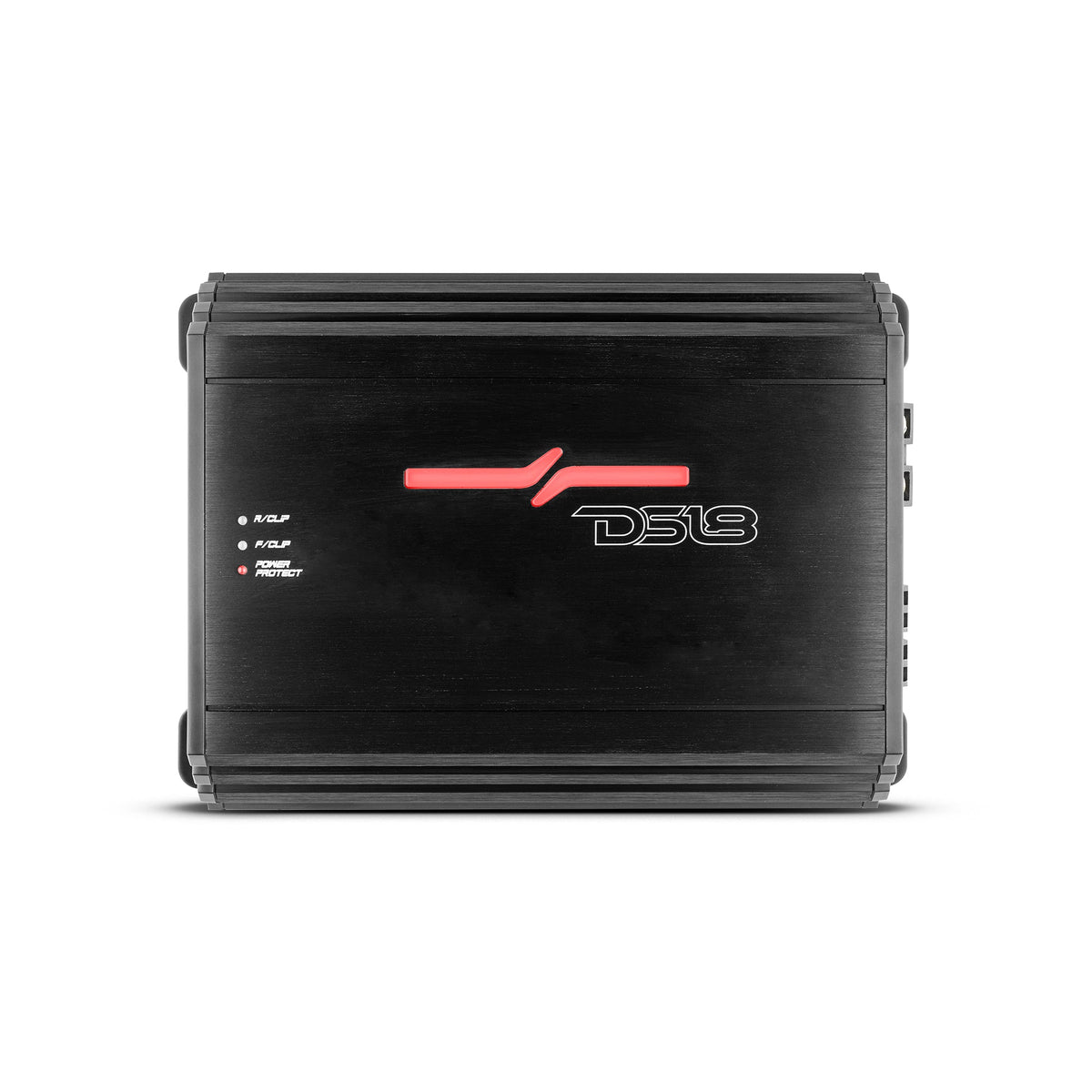

DS18 ZR800.4D ZR 4-Channel Class D Amplifier 4 x 200 Watts Rms @ 4-ohm

DS18 ZR800.4D ZR 4-Channel Class D Amplifier 4 x 200 Watts Rms @ 4-ohm

• Total Watts (Peak): 3600W
• RMS Power @ 4 ohm: 4 x 200W
• RMS Power @ 2 ohm: 4 x 320W
• RMS Power @ 4 ohm Bridge: 2 x 600W
• Frequency Response: 20Hz-20KHz
• Signal to Noise Ratio: >90dB
• Efficiency @ 4ohm: 88%
• Damping Factor: 160
• Input Impedance: 20K ohms
• Channel Separation: 60dB
• Total Harmonic Distortion (THD): 1.00%
• Low Level Input Range: 0.2-6V
• High Level Input: No
• Selectable X-Over: FULL/LPF/HPF
• X-Over Filter Range: 40Hz-4KHz
• Bass Boost Range: No

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
