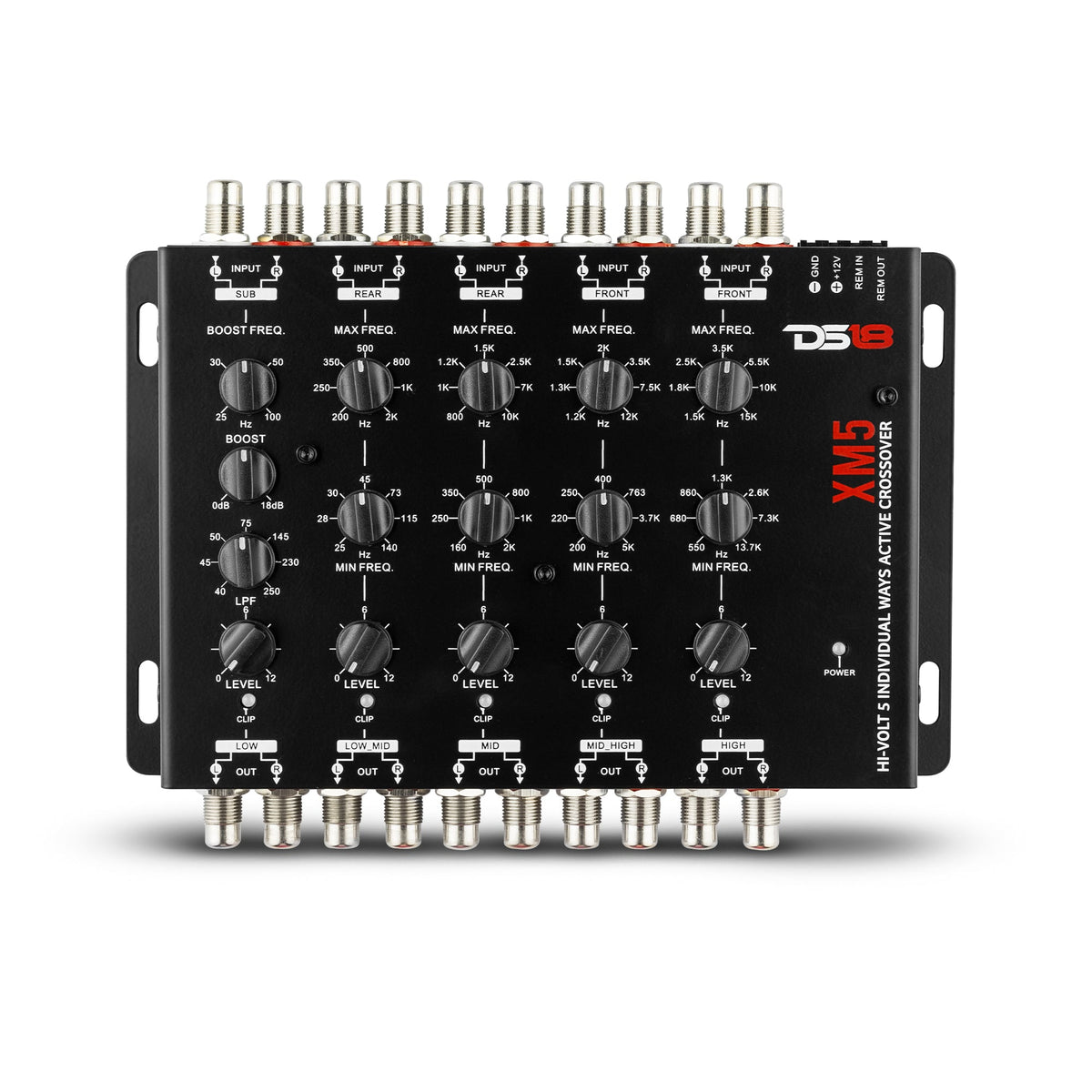

DS18 XM5 High Volt 5-Way Active Crossover

DS18 XM5 High Volt 5-Way Active Crossover

• High voltage RCA outputs up to 8v so your signal can reach your amps with no distortion with tuning.
• Control multiple amps crossover point ls precisely with low, low-mid, mid, mile-high, and high pass settings so each of your speakers can be set properly within their frequency range for the best show quality sound.
• Cutoff Frequency (LPF): Variable 40-250 Hz (-25dB/Octave)
• Boost Frequency: Variable 25-100Hz
• Bass Boost: Variable0-18 dB
• Minimum Cutoff Frequency: Variable 25-140Hz (-12dB/Octave)
• Maximum Cutoff Frequency: Variable 200-2KHz (-12dB/Octave)
• Minimum Cutoff Frequency: Variable 160-2KHz (-12dB/Octave)
• Maximum Cutoff Frequency: Variable 800-10KHz(-12dB/Octave)
• Minimum Cutoff Frequency: Variable 200-5KHz(-12dB/Octave)
• Maximum Cutoff Frequency: Variable 1.2-12KHz(-12dB/Octave)
• Minimum Cutoff Frequency : Variable 550-13.7KHz(-12dB/Octave)
• Maximum Cutoff Frequency: Variable 1.5-15KHz(-12dB/Octave)

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
