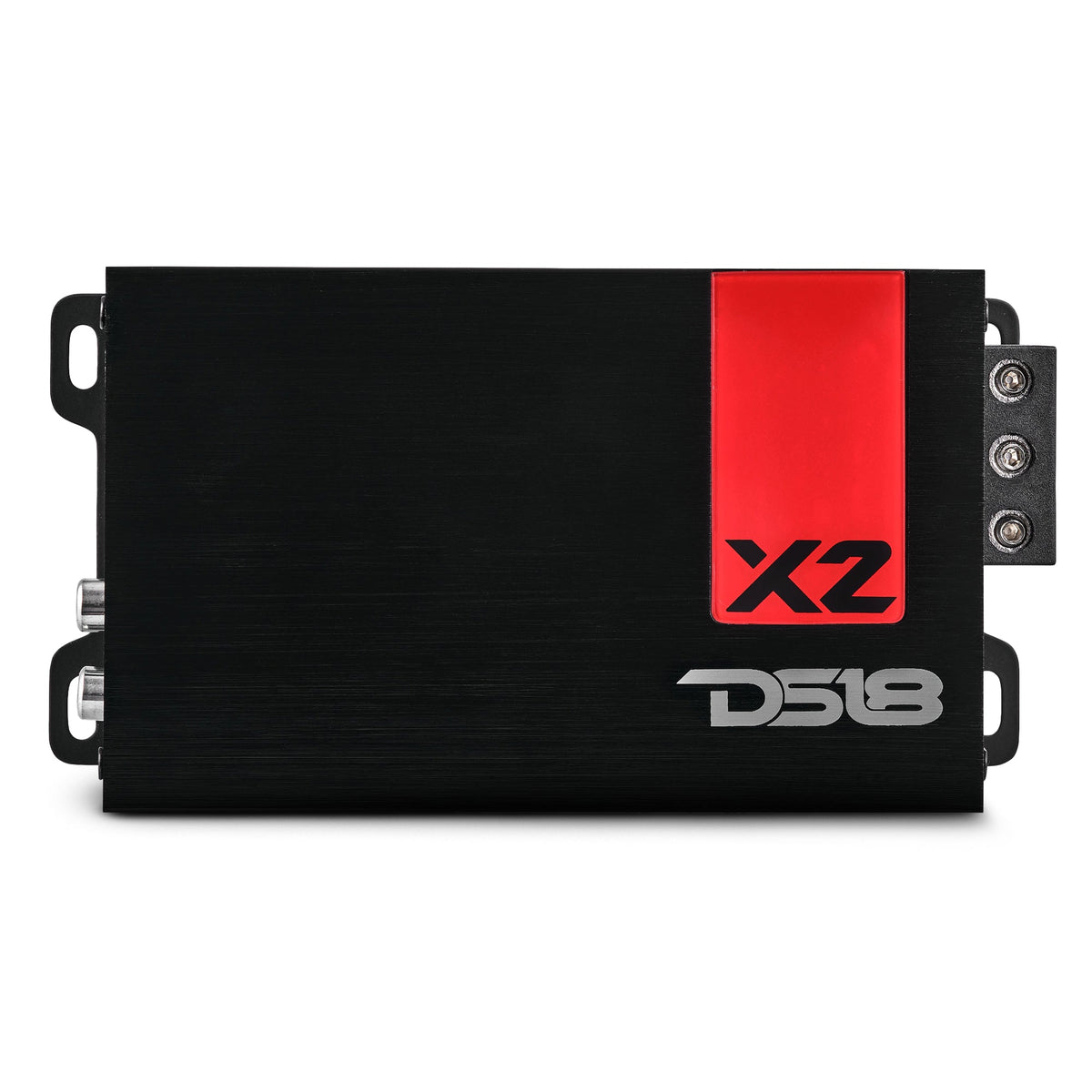

DS18 X2 X 2-Channel Ultra Compact Class D Amplifier 2 x 140 Watts Rms @ 4-ohm

DS18 X2 X 2-Channel Ultra Compact Class D Amplifier 2 x 140 Watts Rms @ 4-ohm

• CLASS: CLASS-D
• AMPLIFIER TYPE: MICRO STEREO FULL RANGE AMP
• CHANNELS: 2
• TOTALWATTS (PEAK): 1140W
• RMS POWER @ 4 OHMS: 140W x 2CH
• RMS POWER @ 2 OHMS: 230W x 2CH
• RMS POWER @ 1 OHMS: -
• RMS POWER @ 4 OHMS BRIDGE: 380W x 1CH
• FREQUECY RESPONSE: 20Hz - 20KHz
• SIGNAL/NOISE RATIO: >90 dB
• EFFICIENCY @ 4 OHMS: >80%
• DAMPING FACTOR: >201
• THD %: <0.2%
• LOW LEVEL INPUT RANGE: 0.2-5V
• SELECTABLE X-OVER: LPF/FLAT/HPF
• X-OVER FILTER RANGE: 40Hz - 400Hz
