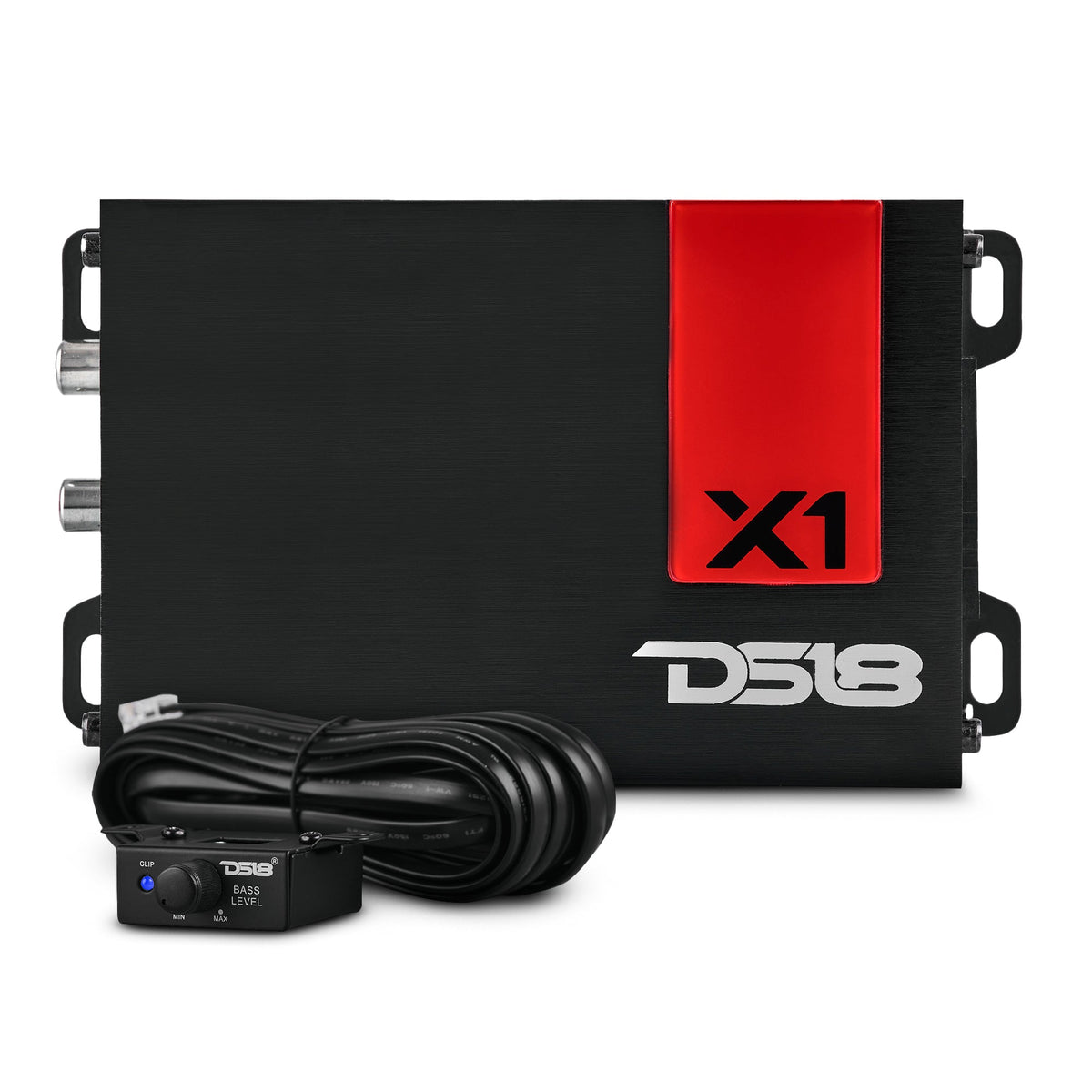

DS18 X1 X 1-Channel Ultra Compact Class D Amplifier 300 Watts Rms @ 1-Ohm

DS18 X1 X 1-Channel Ultra Compact Class D Amplifier 300 Watts Rms @ 1-Ohm

• CLASS: CLASS-D
• AMPLIFIER TYPE: MICRO MONOBLOCK AMP
• CHANNELS: 1
• TOTALWATTS (PEAK): 900W
• RMS POWER @ 4 OHMS: 140W x 1CH
• RMS POWER @ 2 OHMS: 220W x 1CH
• RMS POWER @ 1 OHM: 300W x 1CH
• RMS POWER @ 4 OHMS BRIDGE: -
• FREQUECY RESPONSE: 20Hz - 500Hz
• SIGNAL/NOISE RATIO: >90 dB
• EFFICIENCY @ 4 OHMS: >80%
• DAMPING FACTOR: >200
• THD %: <0.2%
• LOW LEVEL INPUT RANGE: 0.2-5V
• SELECTABLE X-OVER: FIXED LPF
• X-OVER FILTER RANGE: 50Hz - 250Hz

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.
