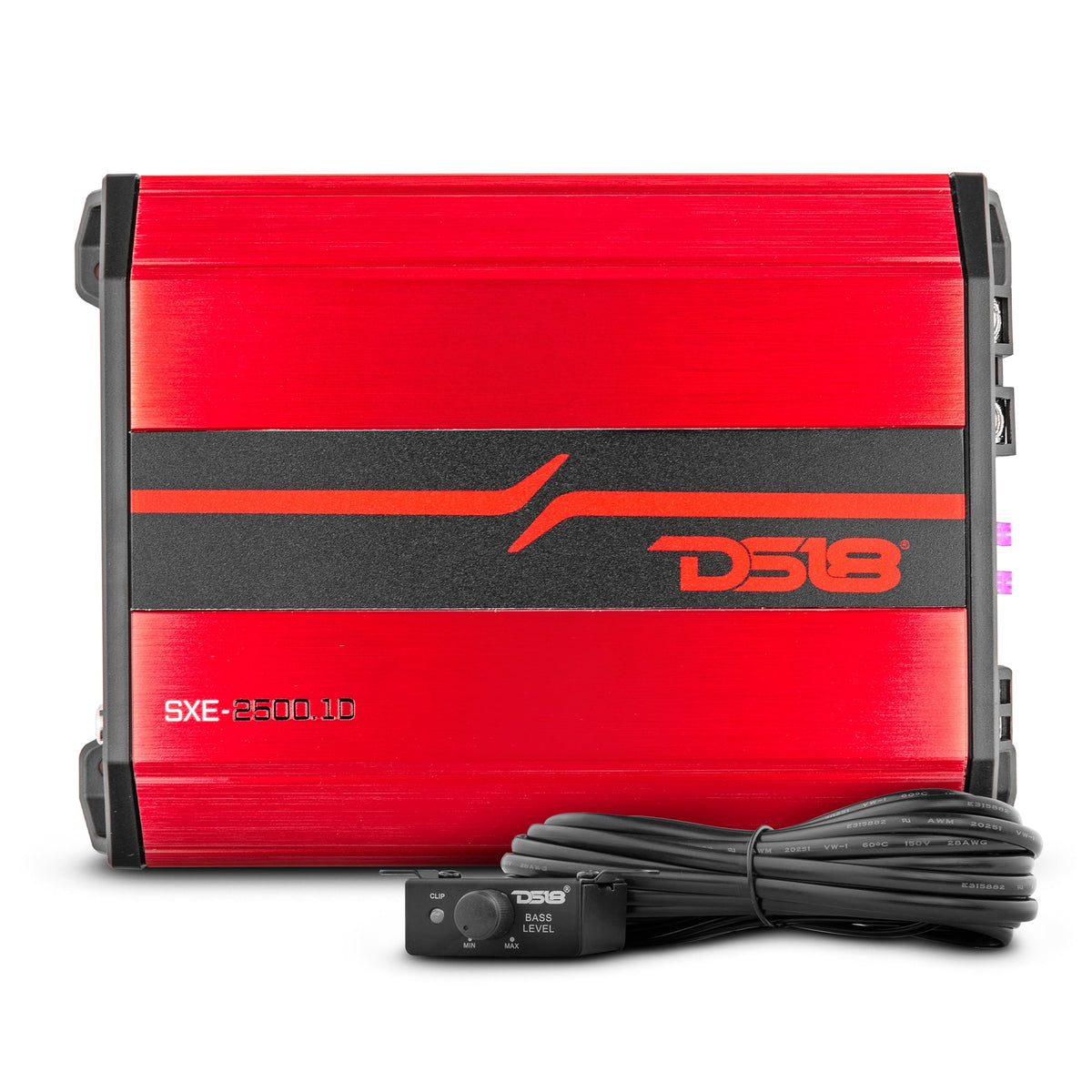

DS18 SXE-2500.1D/RD SXE Class D 1-Channel Amplifier 1 x 800 Watts RMS @ 1-Ohm 2500 Watts

DS18 SXE-2500.1D/RD SXE Class D 1-Channel Amplifier 1 x 800 Watts RMS @ 1-Ohm 2500 Watts

• Total Watts (Peak): 2500W
• RMS Power @ 4 ohms: 300W
• RMS Power @ 2 ohms: 600W
• RMS Power @ 1 ohm: 800W
• RMS Power @ 4 ohms Bridge: N/A
• Frequency Response: 10Hz-250Hz
• Signal to Noise Ratio: 90dB
• Efficiency @ 4 ohms: 0.8
• Damping Factor: 140
• Input Impedance: 20kΩ
• Channel Separation: N/A
• Total Harmonic Distortion (THD): 0,05%
• Low Level Input Range: 200mV-5V
• High Level Input: No
• Selectable X-Over: Fixed LPF
• X-Over Filter Range: 50-250Hz

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
