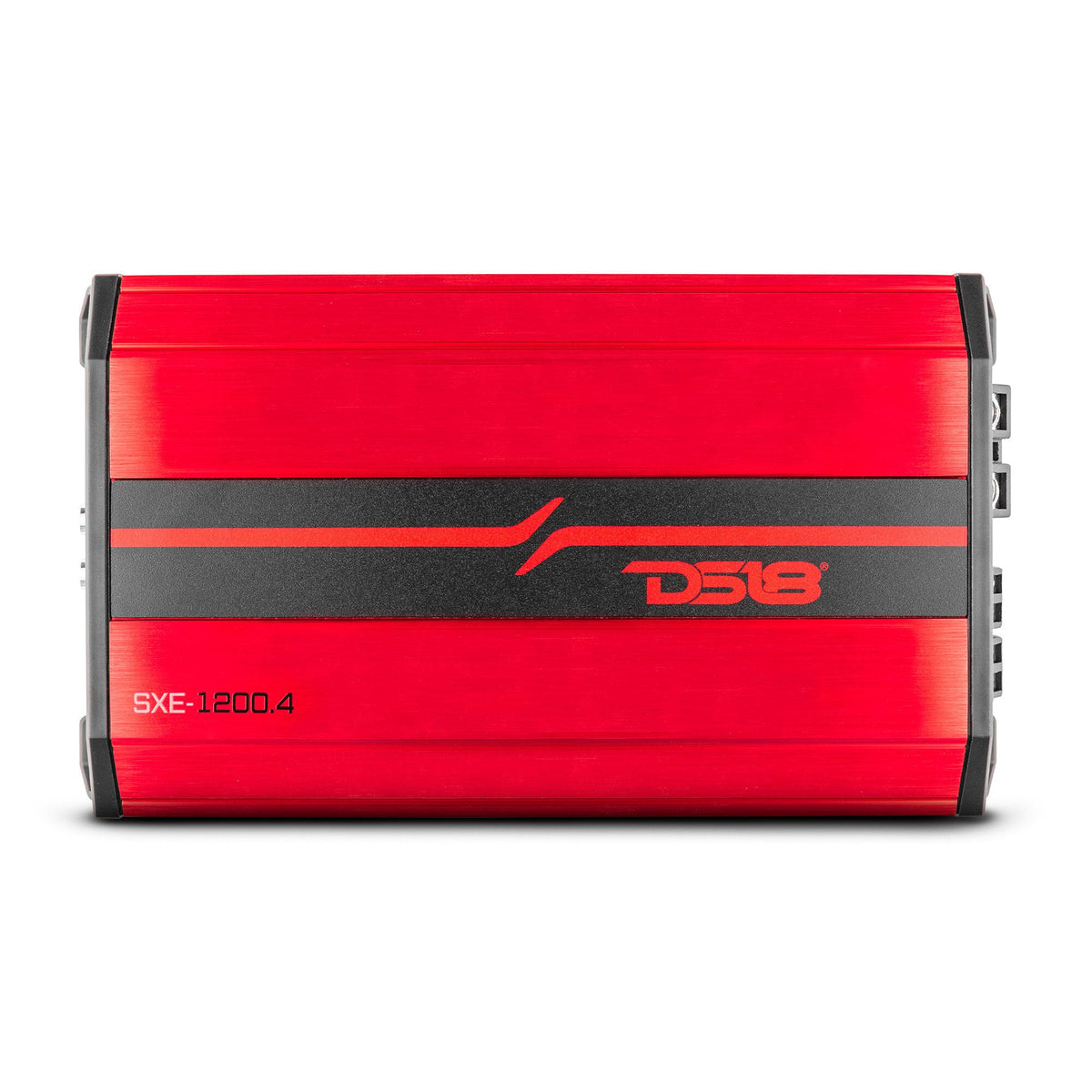

DS18 SXE-1200.4/RD SXE Class A/B 4-Channel Full-Range Amplifier 4 x 60 RMS @ 4-Ohm 1200 Watts

DS18 SXE-1200.4/RD SXE Class A/B 4-Channel Full-Range Amplifier 4 x 60 RMS @ 4-Ohm 1200 Watts

• Total Watts (Peak): 1200W
• RMS Power @ 4 ohms: 4 x 60W
• RMS Power @ 2 ohms: 4 x 100W
• RMS Power @ 1 ohm: /
• RMS Power @ 4 ohms Bridge: 2 x 200W
• Frequency Response: 10Hz-20KHz
• Signal to Noise Ratio: 90dB
• Efficiency @ 4 ohms: 64%
• Damping Factor: 170
• Input Impedance: 20kΩ
• Channel Separation: 45dB
• Total Harmonic Distortion (THD): 0.05%
• Low Level Input Range: 200mV-5V
• High Level Input: /
• Selectable X-Over: HPF/FULL/LPF
• X-Over Filter Range: 40Hz-2KHz

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
