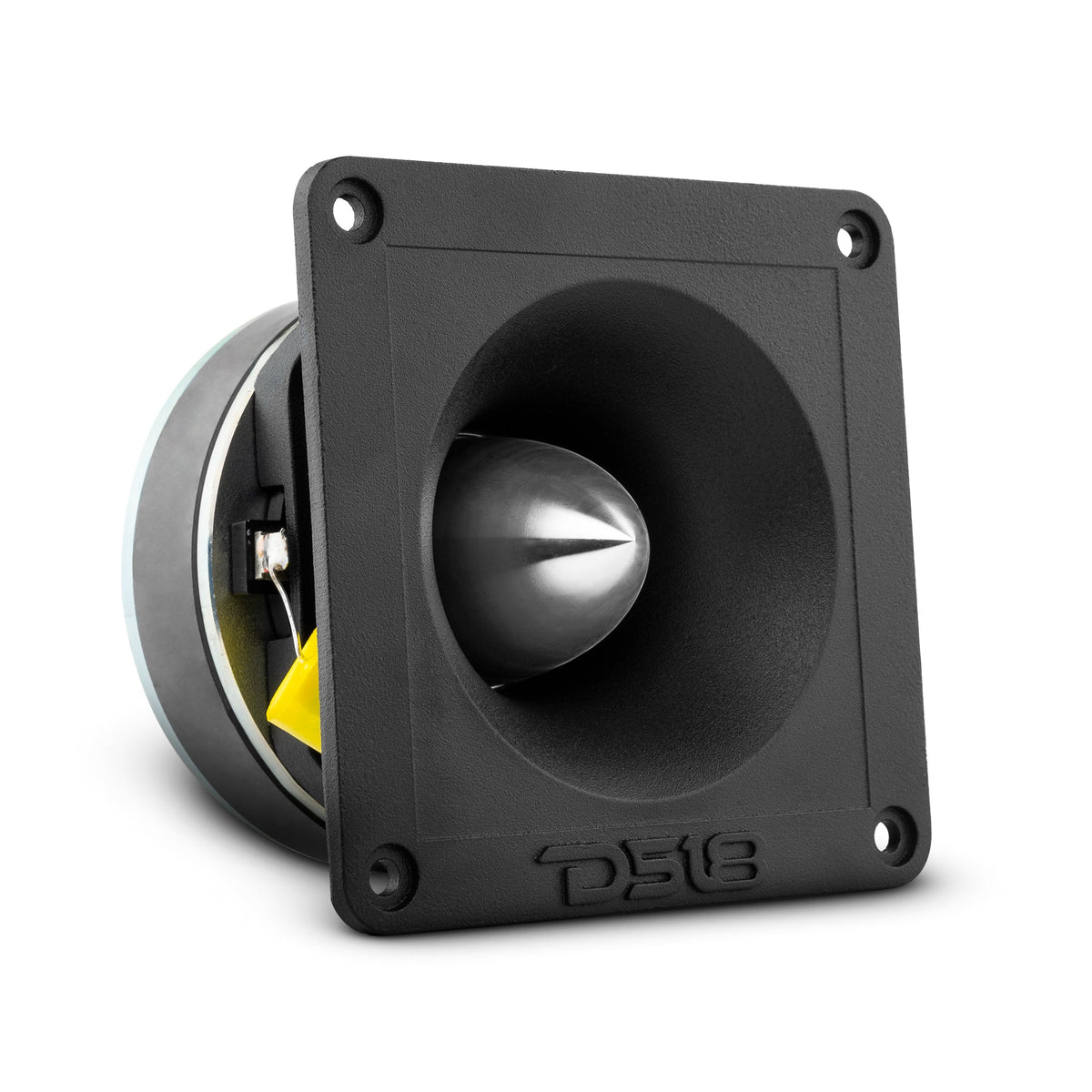

DS18 PRO-TWX6 4" x 4" Super Bullet Tweeter 240 Watts 1.5" Titanium 8-Ohm Vc

DS18 PRO-TWX6 4" x 4" Super Bullet Tweeter 240 Watts 1.5" Titanium 8-Ohm Vc

• Nominal Diameter: 4x4" / 102x102mm
• Nominal Impedance: 8 Ohms
• Peak Power: 480 watts
• Program Power: 240 watts
• AES Power: 120 watts
• Sensitivity (1w/1m): 112dB
• Frequency Response: 1.7KHz-20KHz
• Recommended Hi Pass Crossover: 2.5Hz
• Voice Coil Diameter: 1.5" / 38mm
• Voice Coil Former Material: KSV
• Winding Material: SN
• Diaphragm Material: Titanium
• Body Material: Aluminum
• Magnet Material: Ferrite
• Magnet Weight: 15 oz
• Overall Diameter: 4x4" / 102x102mm

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.
