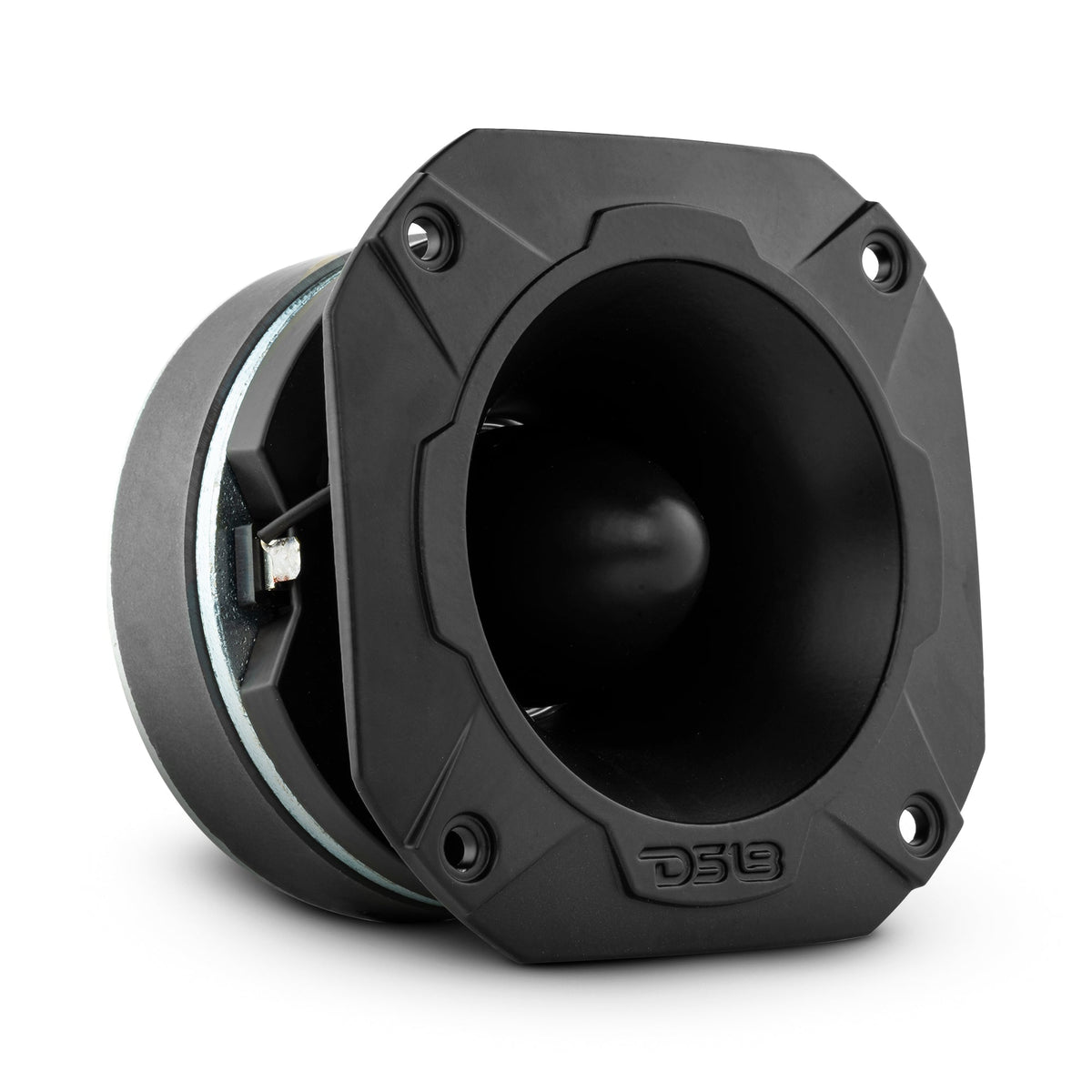

DS18 PRO-TWX3 4" Super Bullet Tweeter 250 Watts 1.5" Titanium 4-Ohm Vc

DS18 PRO-TWX3 4" Super Bullet Tweeter 250 Watts 1.5" Titanium 4-Ohm Vc

• Nominal Diameter: 4” / 102 mm
• Nominal Impedance: 4 Ohms
• AES Power Handling: 125W
• Program Power Handling: 250W
• Peak Power Handling: 500W
• Sensitivity (1w/1m): 106 dB
• Frequency Response: 3K-20KHz
• Recommended Hi Pass Crossover: 3KHz
• Replacement Diaphragm: PRO-TW3VC
• Pair or Single: Single
• Body Material: Aluminum
• Body Color / Finish: Black
• Bullet Material: Aluminum
• Voice Coil Diameter: 1.5” / 38 mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.
