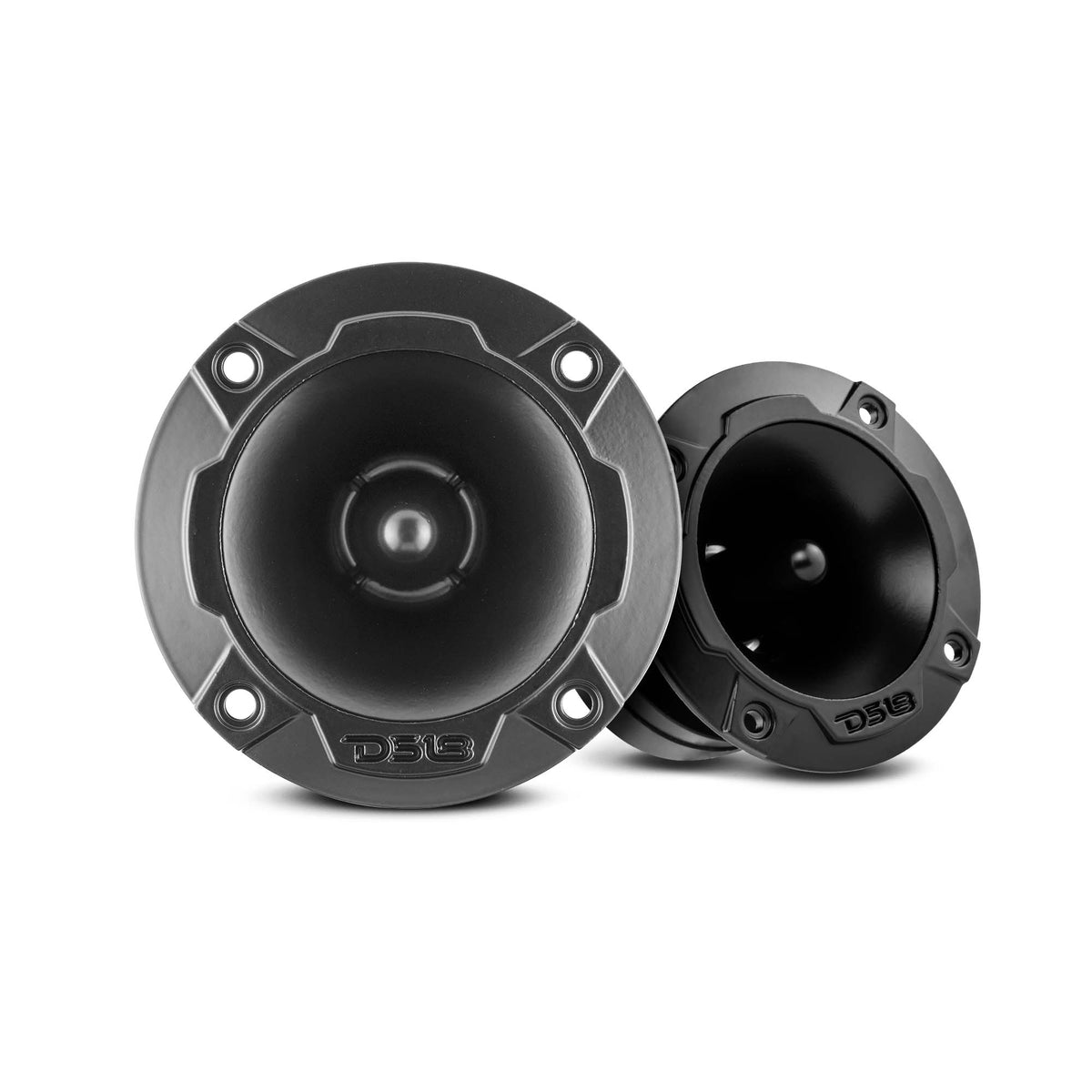

DS18 PRO-TWX2 3.8" Super Bullet Tweeter 120 Watts 1" Aluminum 4-Ohm Vc

DS18 PRO-TWX2 3.8" Super Bullet Tweeter 120 Watts 1" Aluminum 4-Ohm Vc

• Nominal Diameter: 3.78” / 96mm
• Nominal Impedance: 4 Ohms
• AES Power Handling: 60W
• Program Power Handling: 120W
• Peak Power Handling: 240W
• Sensitivity (1w/1m): 103.5 dB
• Frequency Response: 3.5-20KHz
• Recommended Hi Pass Crossover: 3.5KHz
• Pair or Single: Pair
• Replacement Diaphragm: PRO-TW2VC
• Voice Coil Diameter: 1” / 25.4 mm
• VC Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Aluminum
• Magnet Material: Ferrite
• Magnet Weight: 8 Oz.

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
