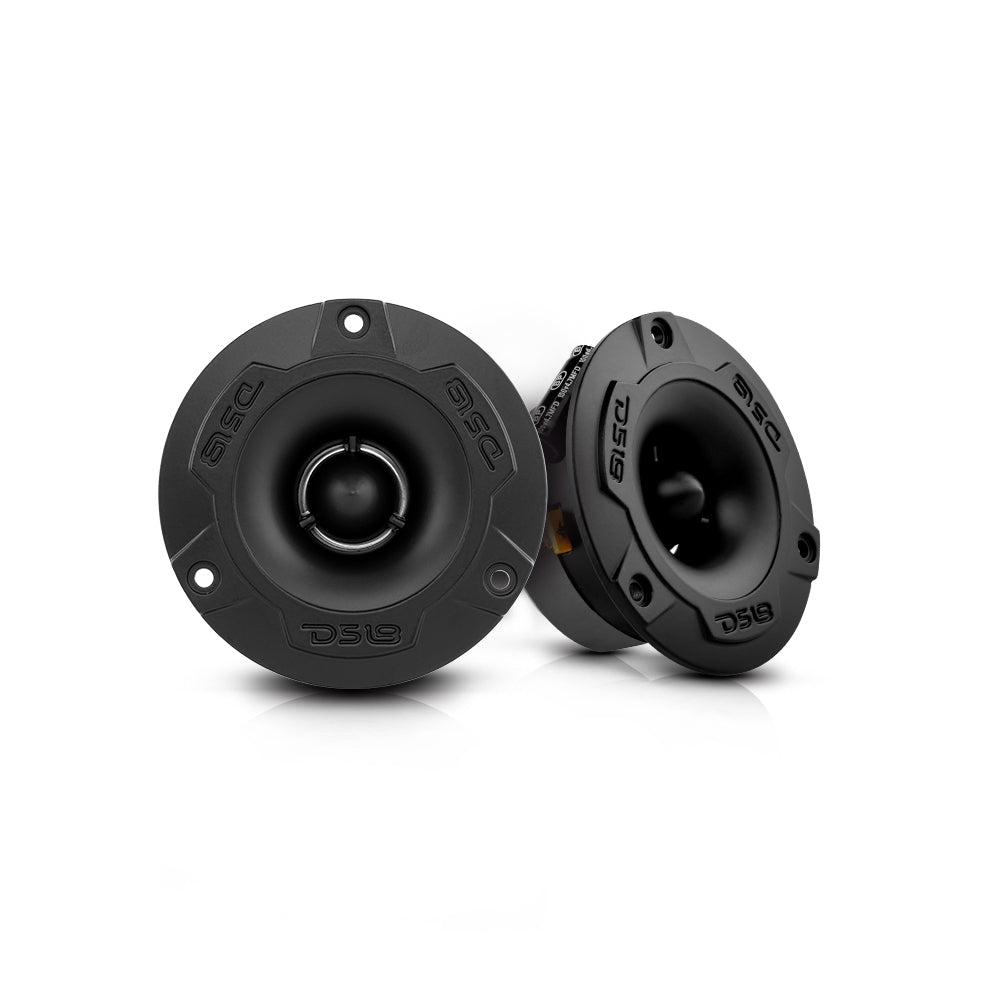

DS18 PRO-TWX1/BK 3.8" Super Bullet Tweeter 120W RMS 1" Aluminum 4-Ohm Vc

DS18 PRO-TWX1/BK 3.8" Super Bullet Tweeter 120W RMS 1" Aluminum 4-Ohm Vc

• Model: PRO-TWX1/BK
• Type: Super Bullet Tweeter
• Peak Power Handling: 240 Watts
• Program Power Handling: 120 Watts
• AES Power Handling: 60 Watts
• Diaphragm Material: Aluminum
• Sensitivity: 103dB
• Impedance: 4 Ohms
• Voice Coil Diameter: 1"
• Frequency Response: 3.5KHz - 20KHz
• Package Quantity: 2
• Replacement Diaphragm: PRO-TW1VC
• Overall Diameter: 3.78"/96mm
• Overall Depth: 1.78"/45mm
• Front Mount Baffle Cutout: 2.76"/70mm
• Mounting Depth: 1.57"/40mm

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.
