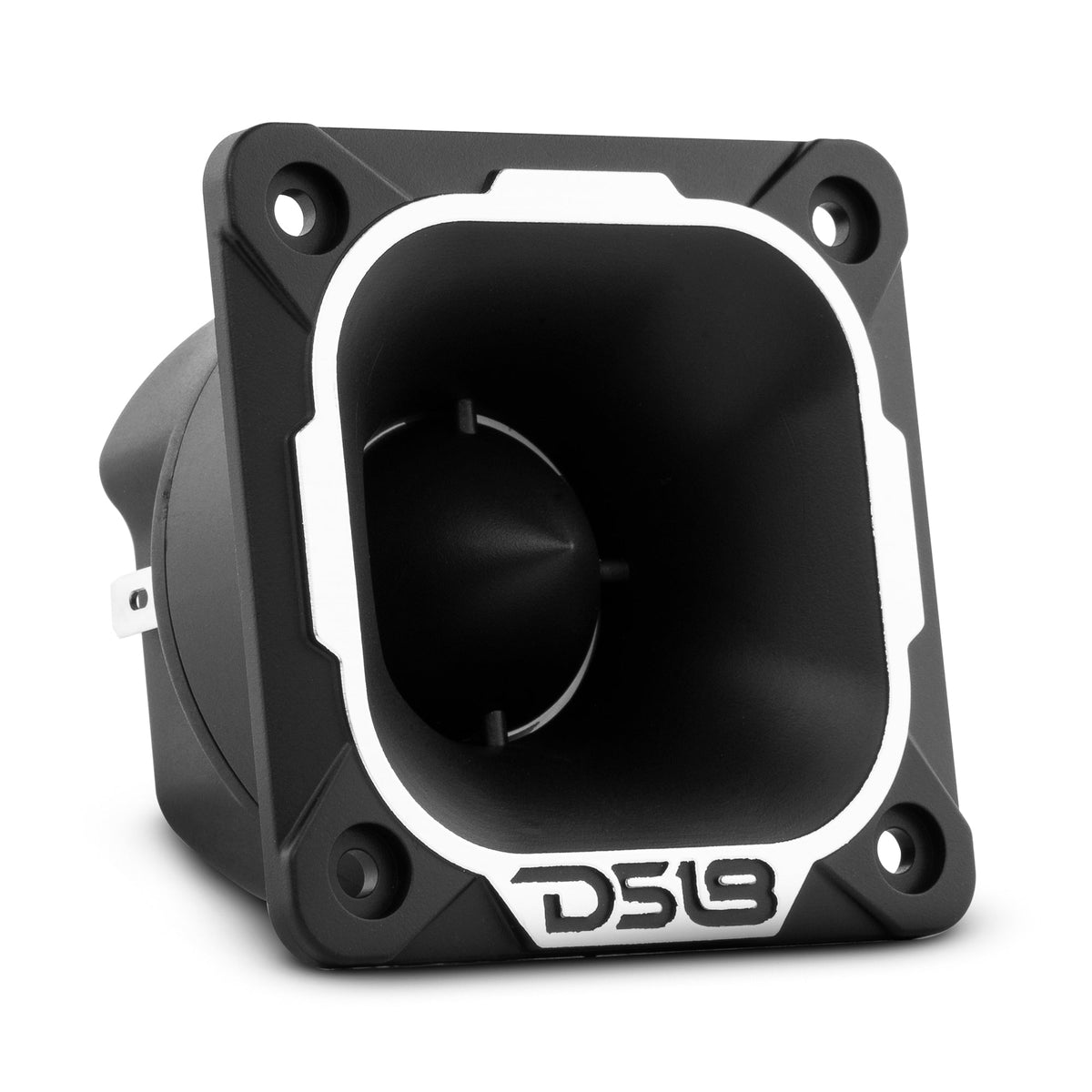

DS18 PRO-TWN3 2.5"High Compression Neodymium Tweeter 100 Watts 1" Pen 4-Ohm Vc

DS18 PRO-TWN3 2.5"High Compression Neodymium Tweeter 100 Watts 1" Pen 4-Ohm Vc

• Nominal Diameter: 2.5” / 63 mm
• Nominal Impedance: 4 Ohms
• AES Power Handling: 50W
• Program Power Handling: 100W
• Peak Program Handling: 200W
• Sensitivity (1w/1m): 107dB
• Frequency Response: 1.6KHz-20KHz
• Recommended Hi Pass Crossover: 2 KHz
• Pair or Single: Single
• Filter Included: Yes, 2.2 uf
• Voice Coil Diameter: 1” / 25.4 mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: PEN
• Magnet Material: Neodymium
• Magnet Weight: 0.57

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.
