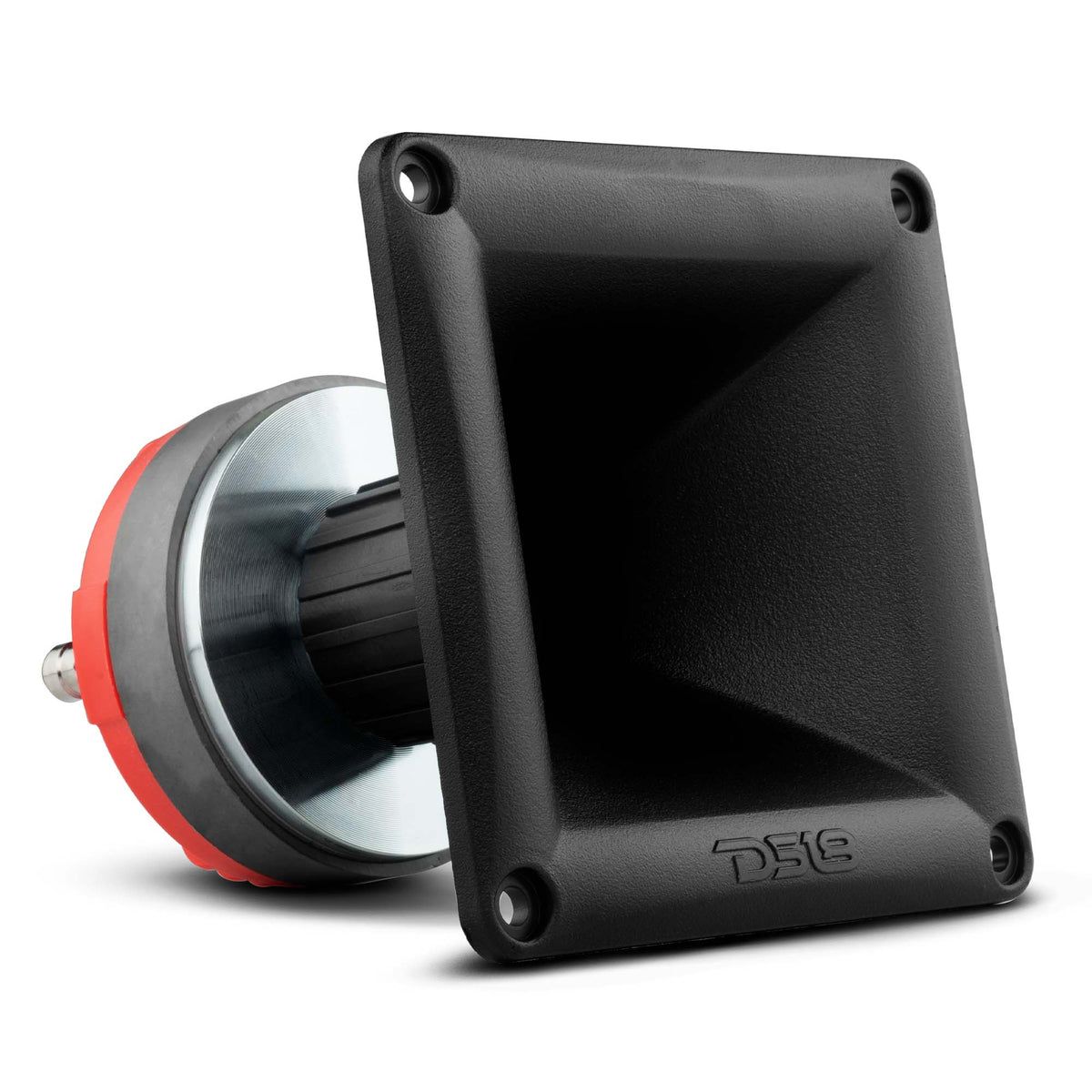

DS18 PRO-DR1PK44 1" Driver Horn Kit 120 Watts 1" Phenolic 8-Ohm Vc (PRO-DR1P +PRO-H44/BK)

DS18 PRO-DR1PK44 1" Driver Horn Kit 120 Watts 1" Phenolic 8-Ohm Vc (PRO-DR1P +PRO-H44/BK)

• Throat Diameter: 1"
• Horn Diameter: 3.14 x 3.14"
• Horn Depth: 2.36"
• Installation Type: Screw Down
• Nominal Impedance: 8 Ohms
• Peak Power Handling: 240W
• Program Power Handling: 120W
• AES Power Handling: 60W
• Sensitivity with Horn (1w/1m): 107.3dB
• Frequency Response: 800Hz - 20KHz
• Recommended HI Pass Crossover: 900Hz
• Voice Coil Diameter: 1"
• Voice Coil Former Material: Kapton
• Winding Material: CCA
• Diaphragm Material: Phenolic
• Magnet Material: Ferrite

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.
