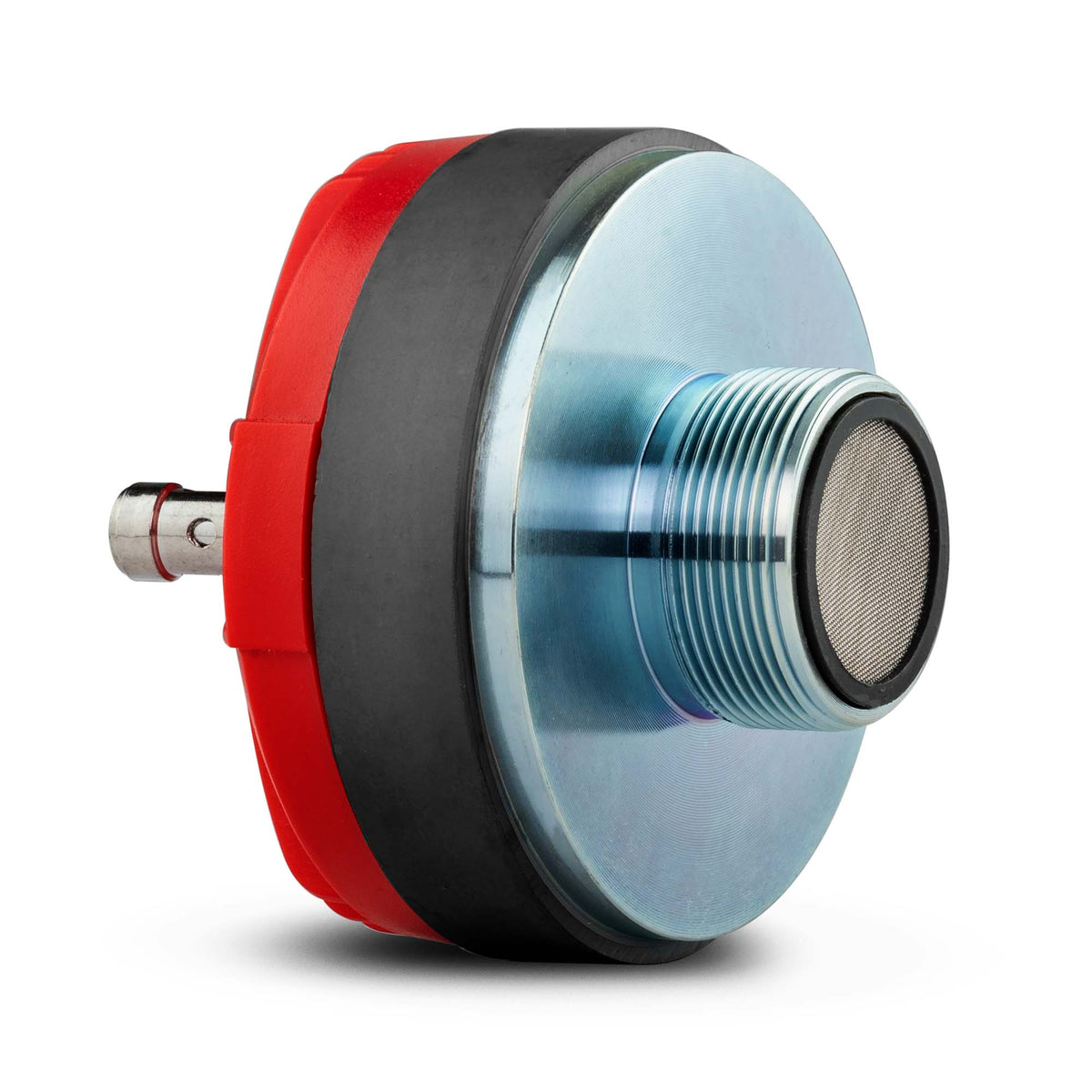

DS18 PRO-DR1P 1" Throat Twist On Compression Driver with 1" Phenolic VC 240 Watts 8 ohm

DS18 PRO-DR1P 1" Throat Twist On Compression Driver with 1" Phenolic VC 240 Watts 8 ohm

• Throat Diameter: 1"
• Installation Type: Screw Down
• Nominal Impedance: 8 ohms
• Peak Power Handling: 240W
• Program Power Handling: 120W
• AES Power: 60 W
• Sensitivity (1w/1m): 103dB
• Frequency Response: 800Hz-20KHz
• Recommended HI Pas Crossover: 900Hz
• Voice Coil Diameter: 1"
• Voice Coil Former Material: Kapton
• Winding Material: CCA
• Diaphragm Material: Phenolic
• Magnet Material: Ferrite
• Magnet Weight: 0.38oz
• Overall Diameter: 3.13"

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.
