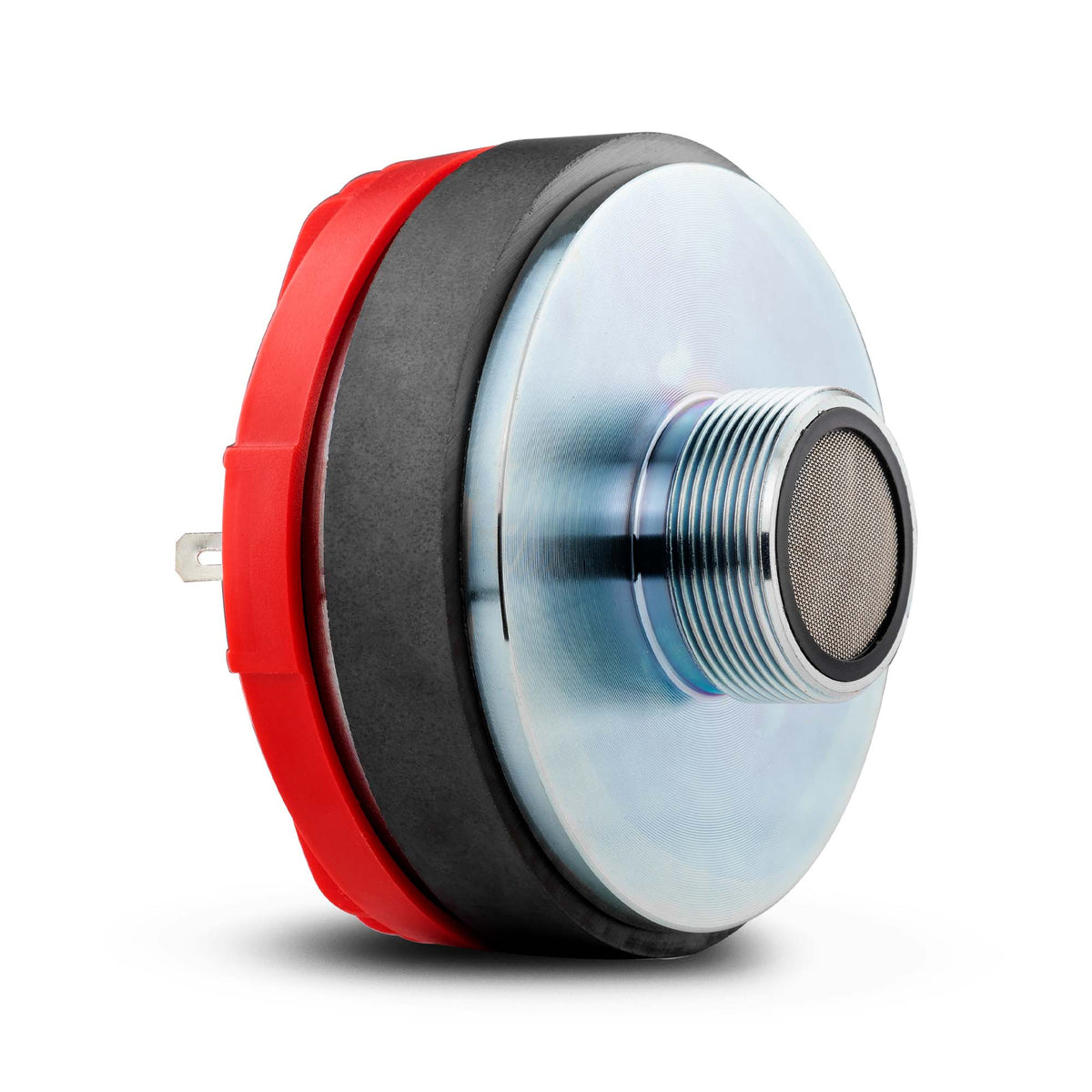

DS18 PRO-DR1.354 1" Throat Twist on Driver 160 Watts 1.35" Titanium Vc 4-Ohm

DS18 PRO-DR1.354 1" Throat Twist on Driver 160 Watts 1.35" Titanium Vc 4-Ohm

• Throat Diameter: 1"
• Installation Type: Screw-On
• Nominal Impedance: 4 ohms
• AES power Handling: 80W
• Program Power Handling: 160W
• Peak Power Handling: 320W
• Sensitivity (1w/1m): 103 dB
• Frequency Response: 500 Hz- 20 KHz
• Recommended Hi Pass Crossover: 1KHz
• Voice Coil Diameter: 1.35"
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Titanium
• Magnet Material: Ferrite
• Magnet Weight: 16 oz
• Overall Diameter: 3.54"
