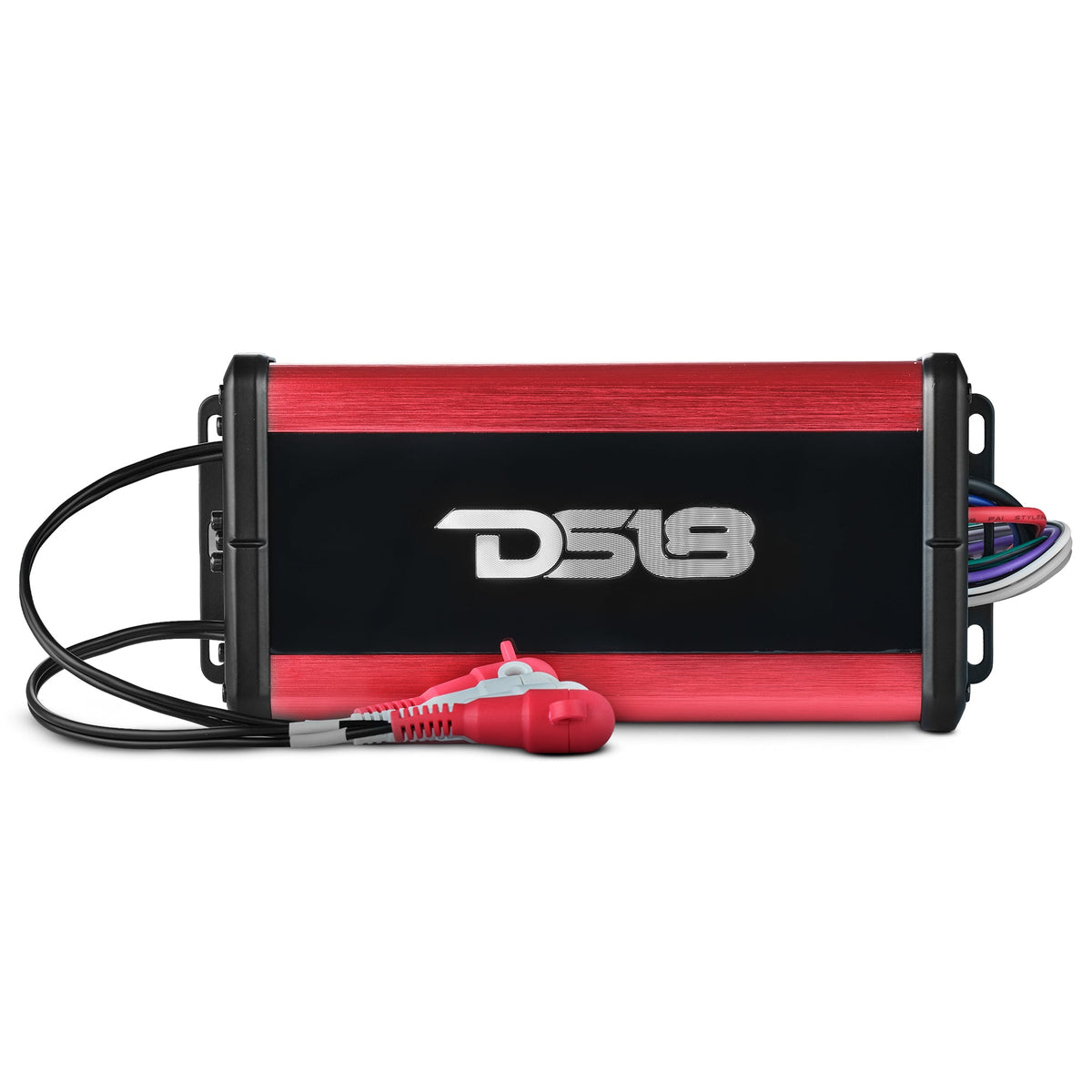

DS18 NXL-N4 NXL 4-Channel Full-Range Class D Waterproof IP67 Marine and Powersports NANO Amplifier <br> 4 x 100 Watts Rms @ 4-Ohm

DS18 NXL-N4 NXL 4-Channel Full-Range Class D Waterproof IP67 Marine and Powersports NANO Amplifier <br> 4 x 100 Watts Rms @ 4-Ohm

• Model: NXL-N4
• Number of Channels: 4
• Max Power: 1800W
• Frequency Response: 20Hz - 20KHz
• 2 Ohms RMS Power (14.4V) Per Channel: 4 x 150W
• 4 Ohms RMS Power (14.4V) Per Channel: 4 x 100W
• 4 Ohms RMS Power Bridge (14.4V) Channel: 2 x 300W
• Input Sensitivity: 0.2V + 10V
• High Pass: 40Hz - 500Hz
• Signal-to-Noise Ratio: 90dB
• Product Dimensions: (L x W x H): 200 x 93.4 x 39.8
• Stable and reliable 4 layers PCB layout design
• IPX67 Waterproof for Powersports applications
• Ultra-compact size for easy installation
• Audio precision quality control verification
• Selectable X-Over: LPF / FULL / HPF

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.
