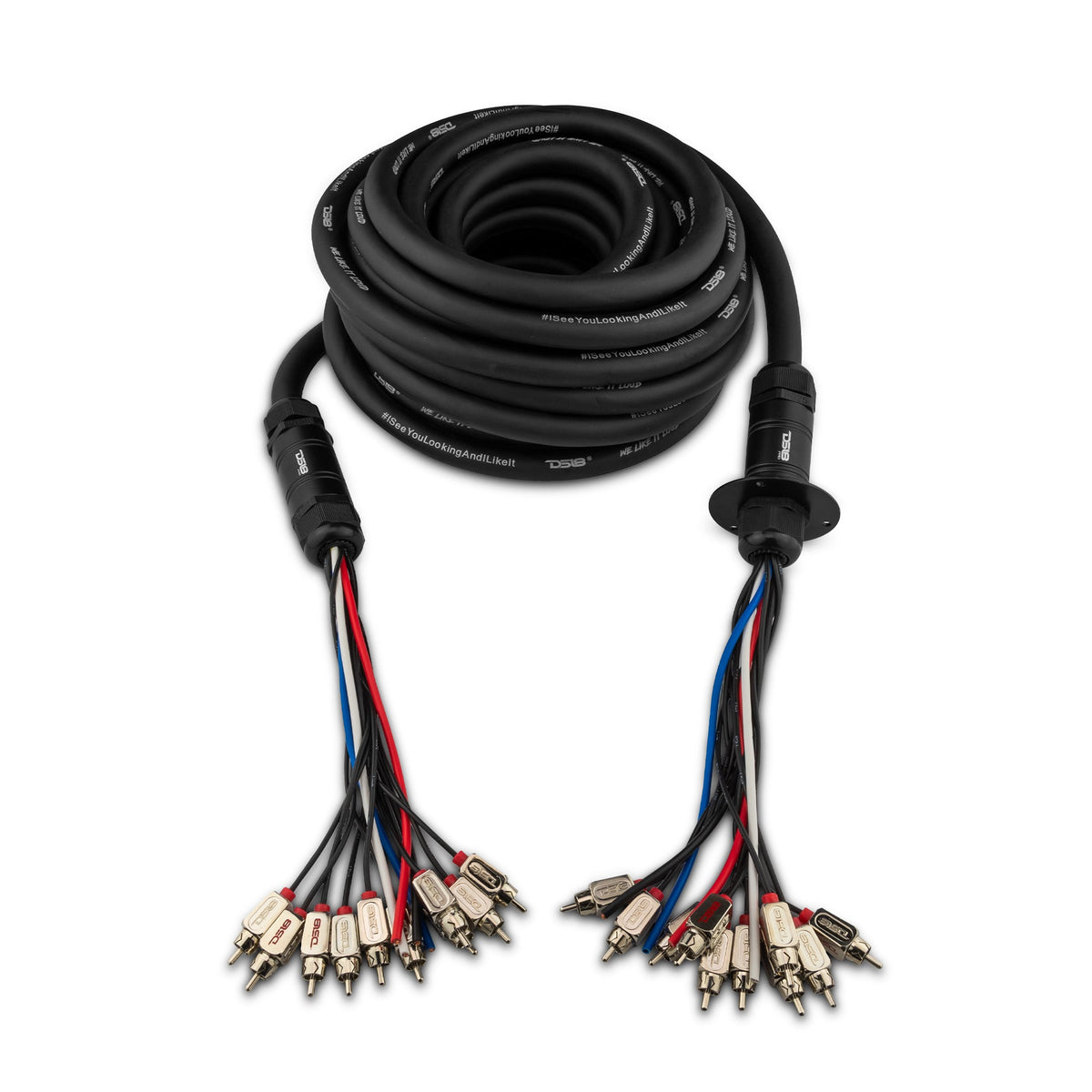

DS18 MDSA10/4.50FT Snake, Medusa 10 Channel RCA and 4 x 12GA OFC Power Wire 50 Feet

DS18 MDSA10/4.50FT Snake, Medusa 10 Channel RCA and 4 x 12GA OFC Power Wire 50 Feet

• Type: Multicore (Medusa / Snake) Audio Wire
• Size / Length: 50 ft / 15.2m
• Number of Audio Channels (RCA): 10
• Number of Power Circuits (Single Wire): 4
• Recommended Maximun Amperage (13.8 Volts / 2% Drop): Up to 4 Amps (Each Circuit)
• RCA Type: Tiffany Style
• RCA Plug Material: Metal
• RCA Plug Size (WxL): 12.4mm x 25mm (only body no tips)
• Conductor Material: Copper 100% oxygen free
• Nominal Outside Diameter (Wire): 2.7mm
• Shield Type / Material / Color: Twisted / PVC Black
• Type: Single Conductor
• Numbers of Threads: 105
• Size of the Thread: 0.21mm
• Nominal Outside Diameter: Ø4mm
• Section Area: 3675mm2

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.
