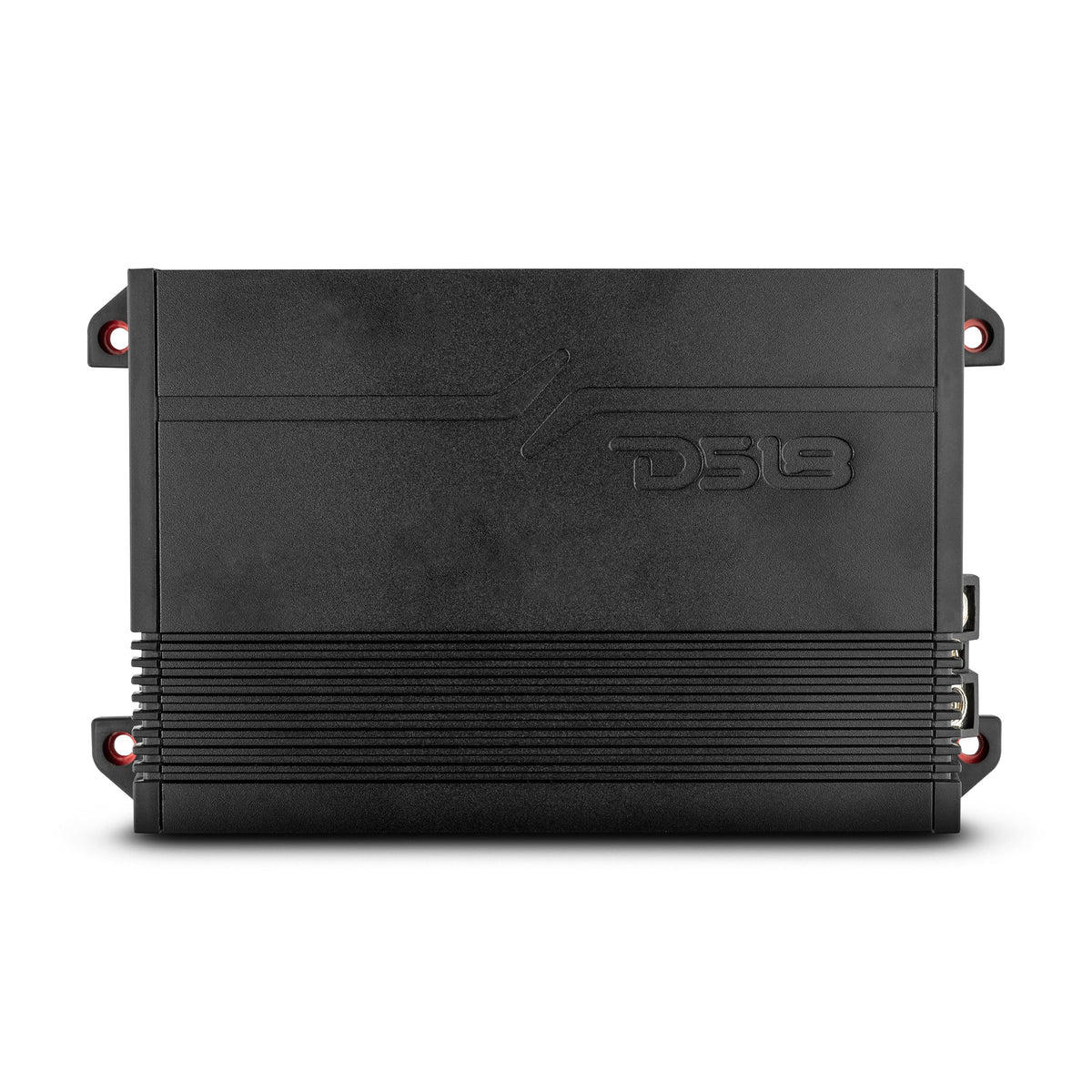

DS18 G700.2D GEN-X Full-Range Class D 2-Channel Amplifier | 2 x 100W RMS @ 4 Ohm

DS18 G700.2D GEN-X Full-Range Class D 2-Channel Amplifier | 2 x 100W RMS @ 4 Ohm

• Total Watts (Peak): 700W
• RMS Power @ 4 ohm: 2 x 100W
• RMS Power @ 2 ohm: 2 x 180W
• RMS Power @ 1 ohm: -
• RMS Power @ 4 ohm Bridge: 1 x 360W
• Frequency Response: 20Hz-20Khz
• Signal to Noise Ratio: >90dB
• Efficiency @ 4ohm: 0.94
• Damping Factor: 78
• Input Impedance: 22K
• Channel Separation: 55dB
• Total Harmonic Distortion (THD): 0.0001
• Low Level Input Range: 0.25-6V
• High Level Input: No
• Selectable X-Over: LPF/FLAT/HPF
• X-Over Filter Range: 50Hz-2KHz

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
