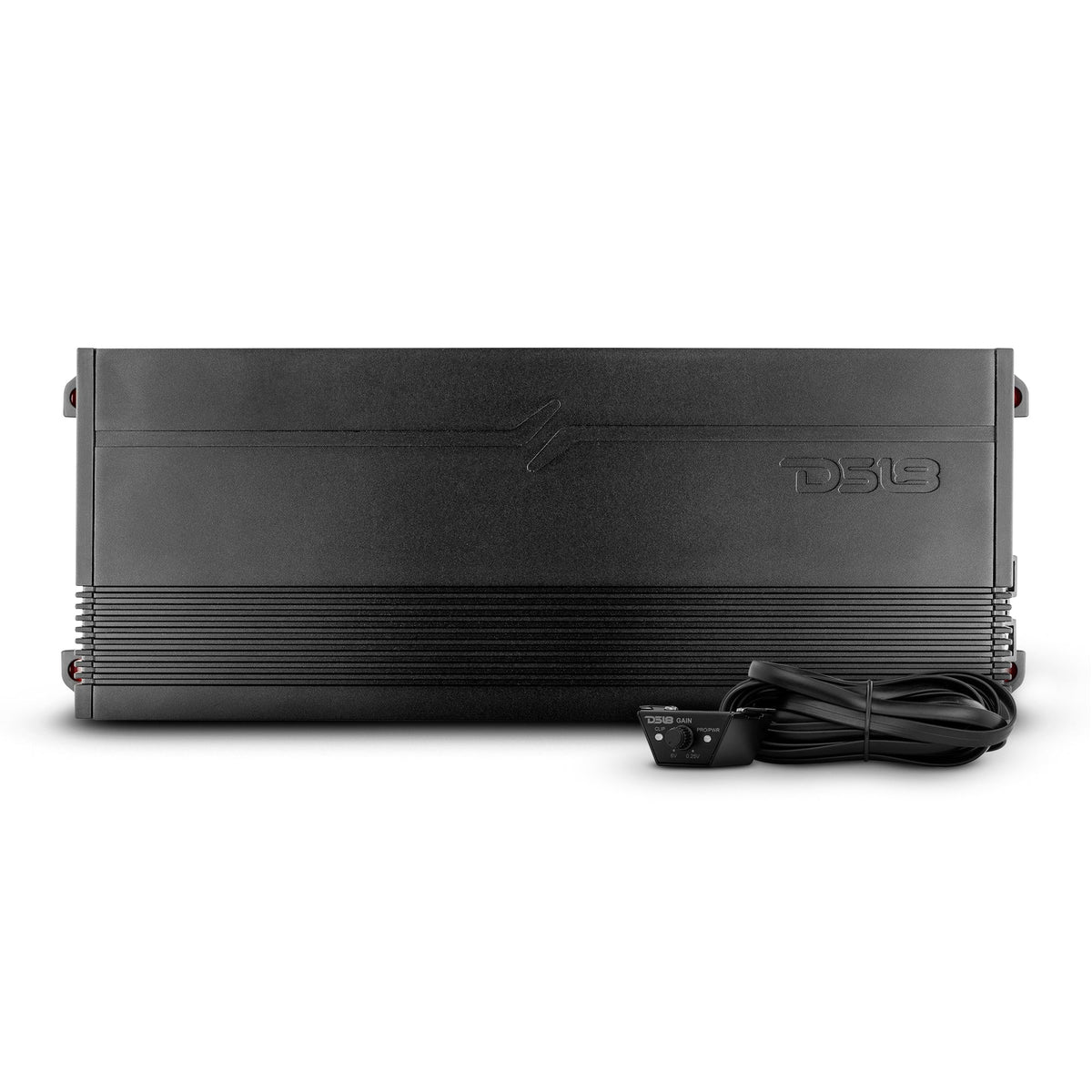

DS18 G4000.5D GEN-X 5-Channel Class D Amplifier | 4 x 130W RMS @ 4-Ohm + 1 x 900W RMS @ 1-Ohm

DS18 G4000.5D GEN-X 5-Channel Class D Amplifier | 4 x 130W RMS @ 4-Ohm + 1 x 900W RMS @ 1-Ohm

• Total Watts (Peak): 4000W
• RMS Power @ 4 ohm: 4 x 130W / SUB: 300W
• RMS Power @ 2 ohm: 4 x 220W / SUB: 600W
• RMS Power @ 1 ohm: SUB: 900W
• RMS Power @ 4 ohm Bridge: 2 x 420W
• Frequency Response: 20Hz-20Khz
• Signal to Noise Ratio: >90dB
• Efficiency @ 4ohm: 0.83
• Damping Factor: 78
• Input Impedance: 22K
• Channel Separation: 55dB
• Total Harmonic Distortion (THD): 0.0001
• Low Level Input Range: 0.25-6V
• High Level Input: No
• Selectable X-Over: HPF/LPF
• X-Over Filter Range: HPF:10-250Hz / LPF:50-250Hz

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
