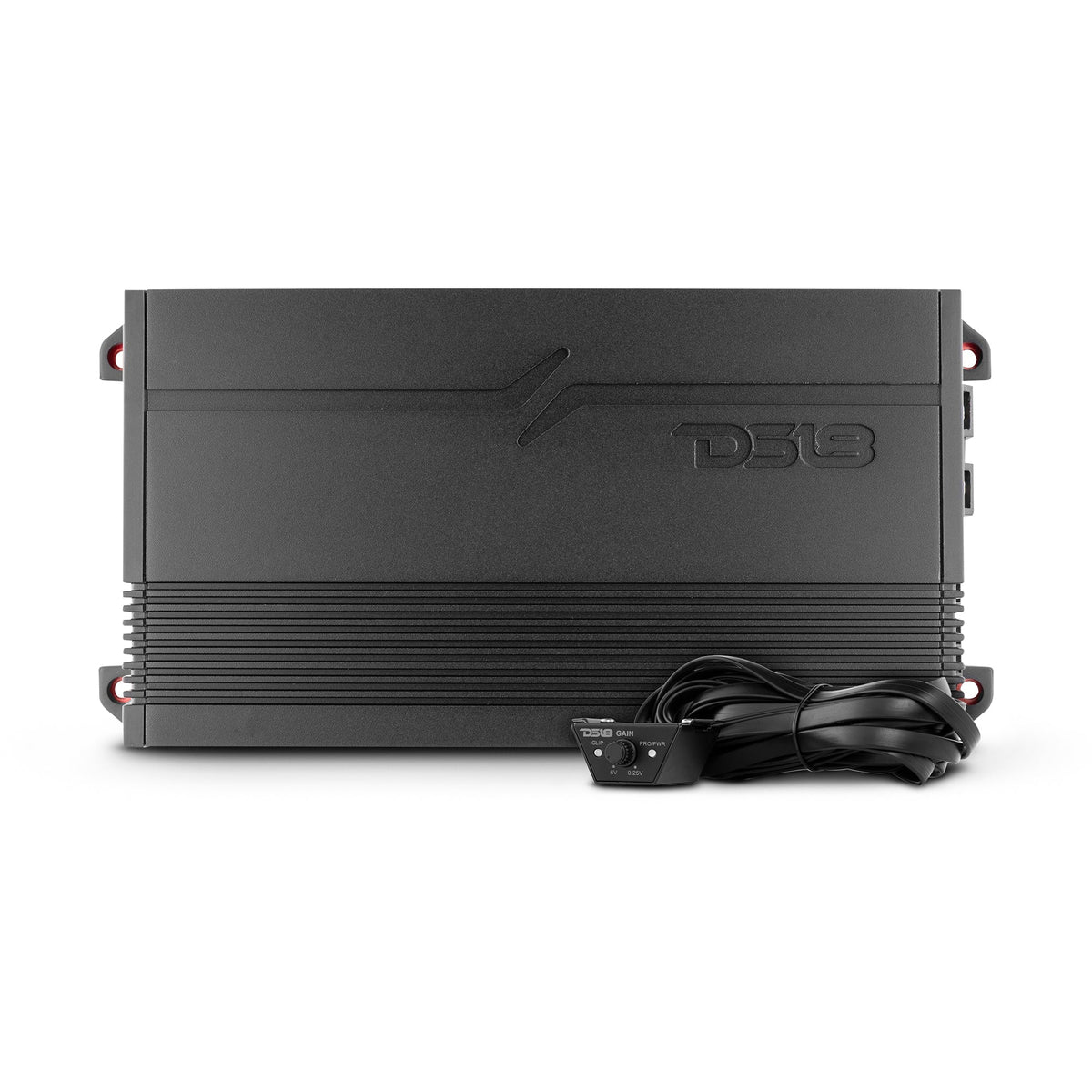

DS18 G1800.1D GEN-X Class D 1-Channel Amplifier | 600W RMS @ 1-Ohm

DS18 G1800.1D GEN-X Class D 1-Channel Amplifier | 600W RMS @ 1-Ohm

• Total Watts (Peak): 1800W
• RMS Power @ 4 ohm: 250W
• RMS Power @ 2 ohm: 400W
• RMS Power @ 1 ohm: 600W
• Frequency Response: 10-500Hz
• Signal to Noise Ratio: >93dB
• Efficiency @ 4ohm: 90%
• Damping Factor: 45
• Input Impedance: 22K
• Channel Separation: N/A
• Total Harmonic Distortion (THD): 0.0014%
• Low Level Input Range: 0.25-6V
• High Level Input: YES
• Selectable X-Over: Fixed LPF
• X-Over Filter Range: 35-250Hz
• Bass Boost Range: 0-12dB

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
