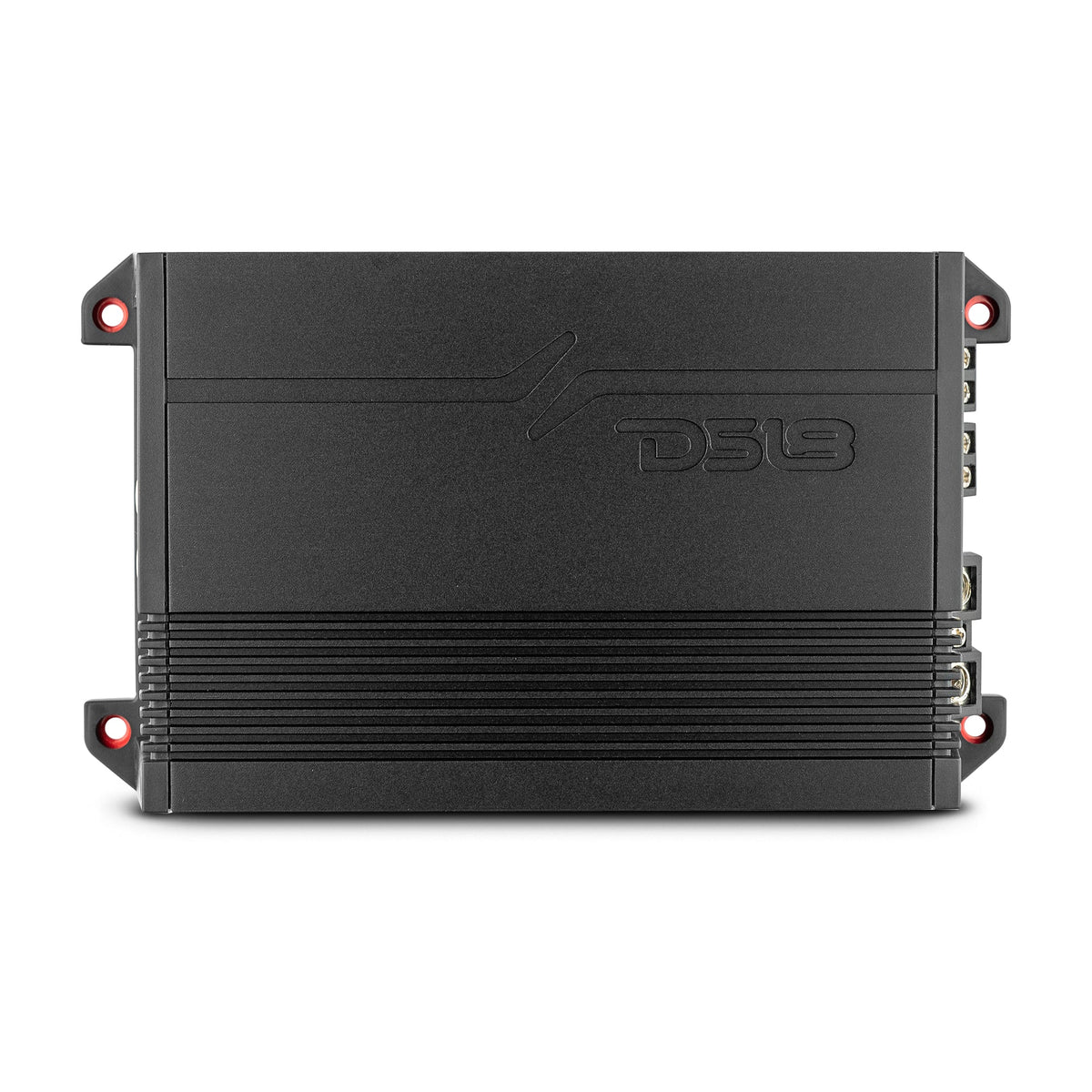

DS18 G1000.4D GEN-X Full-Range Class D 4-Channel Amplifier | 4 x 90W RMS @ 4-Ohm

DS18 G1000.4D GEN-X Full-Range Class D 4-Channel Amplifier | 4 x 90W RMS @ 4-Ohm

• Total Watts (Peak): 1000W
• RMS Power @ 4 ohm: 4 x 90W
• RMS Power @ 2 ohm: 4 x 150W
• RMS Power @ 1 ohm: -
• RMS Power @ 4 ohm Bridge: 2 x 300W
• Frequency Response: 20Hz-20Khz
• Signal to Noise Ratio: >90dB
• Efficiency @ 4ohm: 0.92
• Damping Factor: 78
• Input Impedance: 22K
• Channel Separation: 55dB
• Total Harmonic Distortion (THD): 0.0001
• Low Level Input Range: 0.25-6V
• High Level Input: Yes
• Selectable X-Over: LPF/FLAT/HPF
• X-Over Filter Range: 50Hz-2KHz

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
