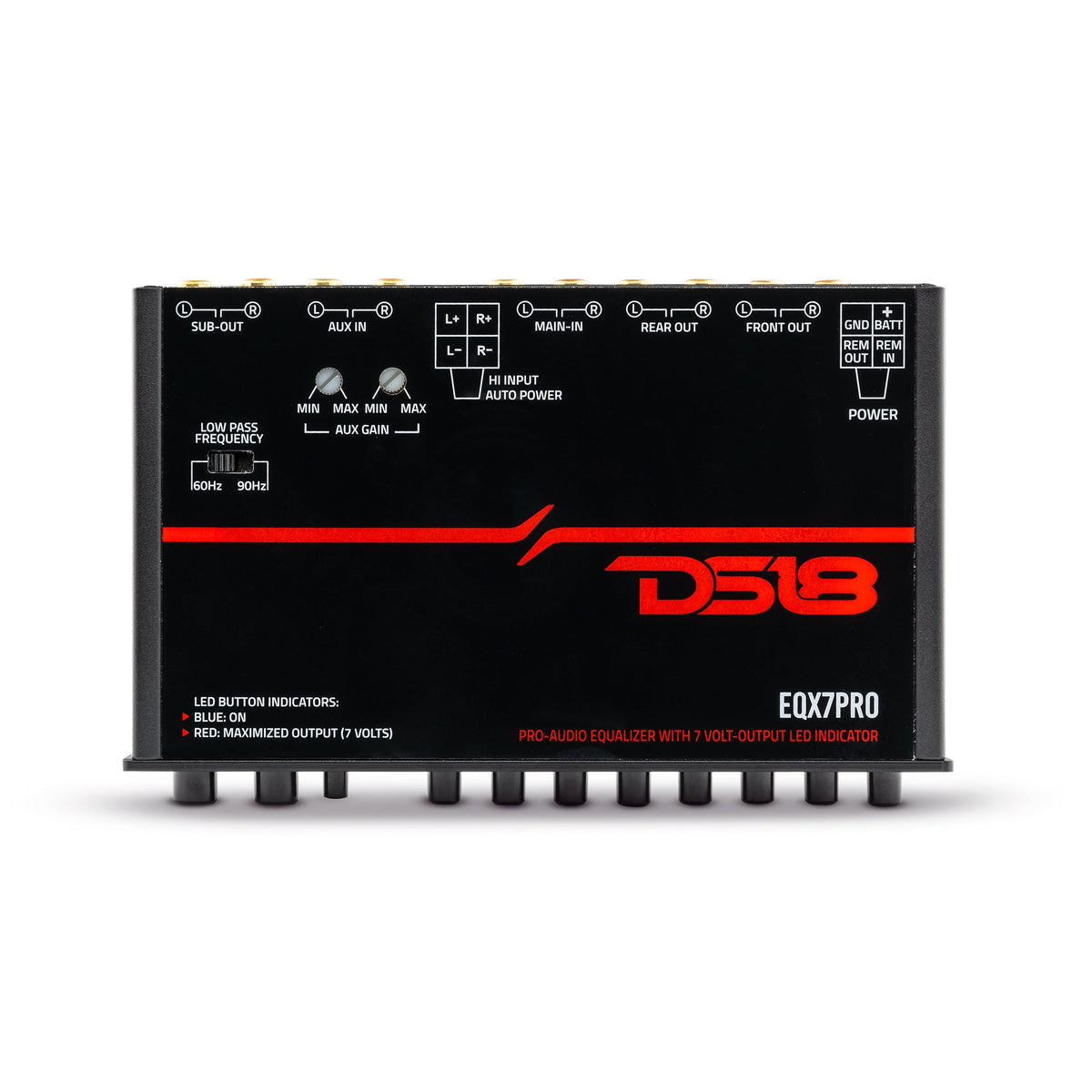

DS18 EQX7PRO High Volt 7-Band Equalizer with High Level Input, Auto Turn On And High Volt LED Indicator

DS18 EQX7PRO High Volt 7-Band Equalizer with High Level Input, Auto Turn On And High Volt LED Indicator

• Type of Equalizer: Graphic
• Number of bands: 7
• Frequency Point: 50, 125, 320, 750, 2.2k, 6k, 16k
• Boost/Cut: 12dB (15dB Subwoofer Frequency)
• Passive Crossover Ways / Type: 1 (LPF) (Subwoofer Ch)
• Frequency Crossover point: 60/120Hz Selectable
• Cut-Off Slope: 12dB/Oct
• S/N Ratio: 100dB
• THD: 0.005%
• Input Sensitivity: 50mV-3V
• Input Impedance: 20Kohm
• Output Voltage: 8V
• Output Impedance: 2Kohm
• Head Room: 20dB
• Stereo Separation: 82dB @ 1Khz
• Frequency Response: 10Hz-30Khz
