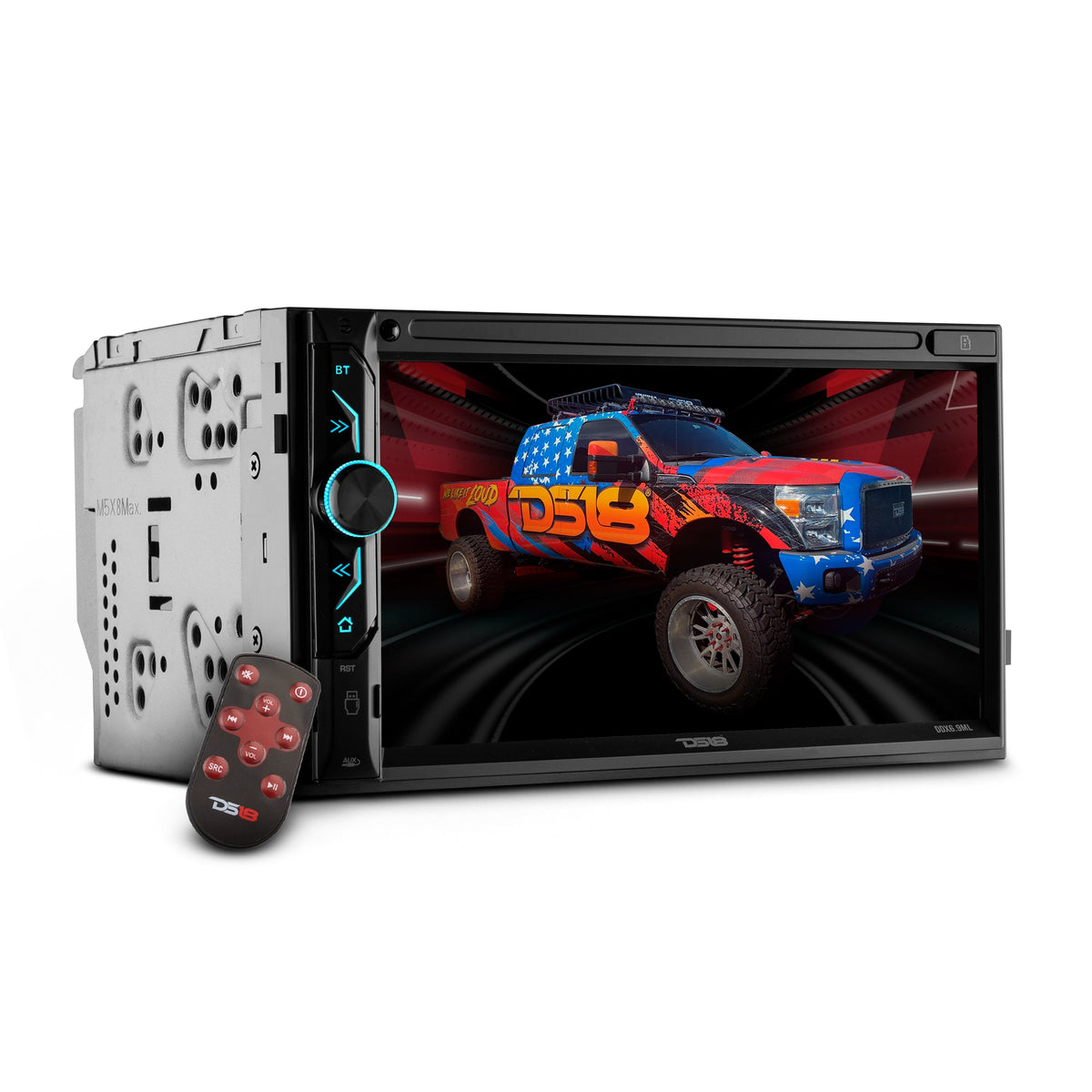

DS18 DDX6.9 6.9" Touchscreen Double-DIN Headunit with DVD, Bluetooth, USB and Mirror Link

DS18 DDX6.9 6.9" Touchscreen Double-DIN Headunit with DVD, Bluetooth, USB and Mirror Link

• Rated power source: 14.4V DC (10.8V to 15V operation)
• Maximum Current Consumption: 10 Amp
• Dimensions (W x H x D): Chassis: 178mm x 100mm x 165mm Bezel frame: 170mm x 96mm x 5mm Weight: 1.52 Kg
• Screen Size / Aspect Ratio: 9 inch / Wide 16:9
• Pixels: 1024 x 600
• Display Type: IPS / WSVGA / Capacitive Touch Screen
• Temperature Operation: -20o C to +60o C (14o F to 140o F)
• Maximum Power Output: 40W x 4 Ch / 4 ohms
• Continuous Power Output: 15W x 4 Ch / 4 ohms
• Pre-output Level: 4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
• Equalizer: 10 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz,
• Gain: +/- 12dB
• Audio Control: Volume / Balance / Fader / Subwoofer Level
• Frequency Range: FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
• Presets Memory: 30 Stations (18 FM/12 AM)
• Region: Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)

Confirm the exact model, electrical requirements and installation dimensions before ordering. Professional installation recommended.

Manufacturer specifications and installation information
