Axxess AXDSPX-HK2 DSP Data Interface - Hyundai | Kia 2011-2020

DSP Data Interface - Hyundai | Kia 2011-2020

• Retains ability to work with S/PDIF® digitally controlled amplified systems

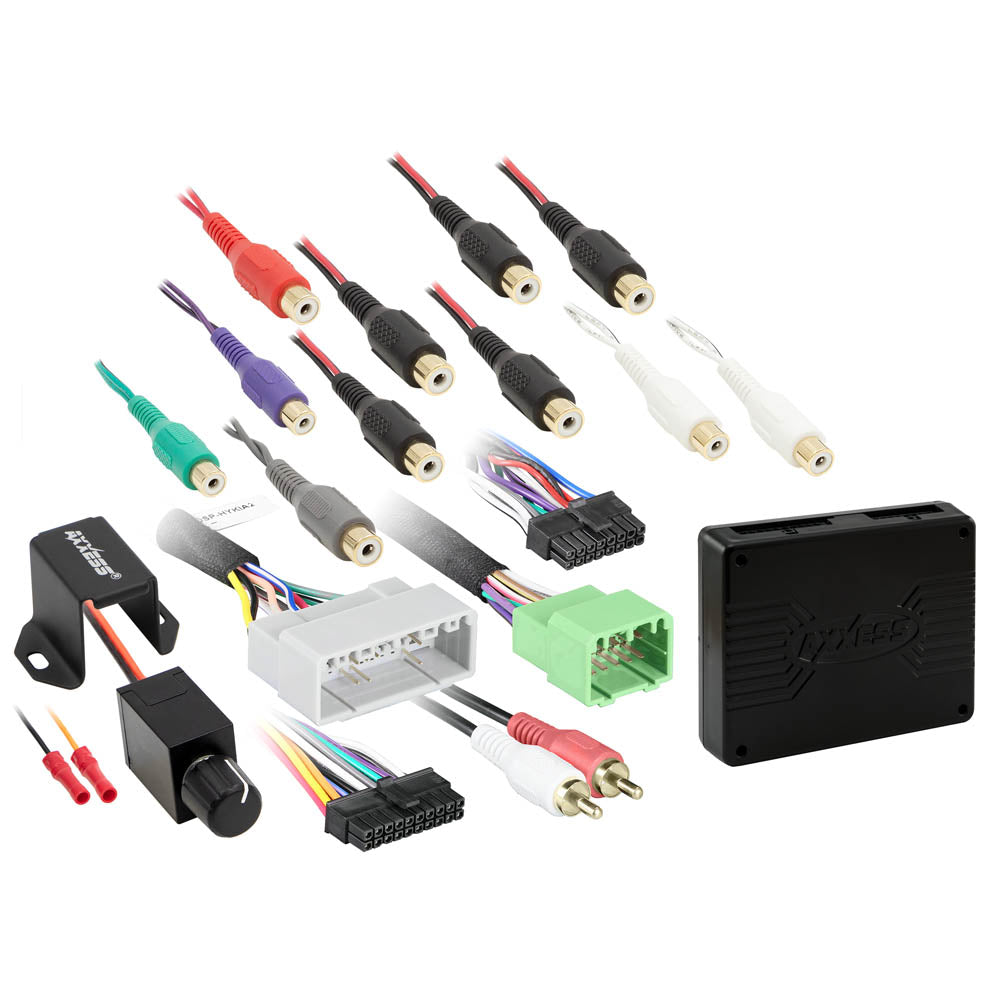

• Package includes AXDSP-X interface, vehicle-specific T-harness, and an amplifier bypass harness
• Factory amplifier does not need to be retained
• Install location: At the factory amplifier
• Micro “B” USB updatable
• Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
• 6 inputs and 10 individually assignable outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Selectable Graphic or Parametric EQ
• Independent equalization on each of the 10 outputs
• Each channel can be delayed independently up to 10 ms
• Clipping detection and limiting circuits
• Bass knob included
• Retains OE voice prompts (Blue Link®/UVO®) with adjustable level if vehicle is equipped
• Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets
• Read, write, and store configurations for future recall
• Password protect feature available in the app

Confirm the exact vehicle, factory audio system and required companion parts before installation. Professional installation recommended.

Manufacturer specifications, installation instructions and vehicle fit guide
