Axxess AXDSPX-GM30 DSP Data Interface - GM 2019-2023

DSP Data Interface - GM 2019-2023

• Designed for non-amplified systems

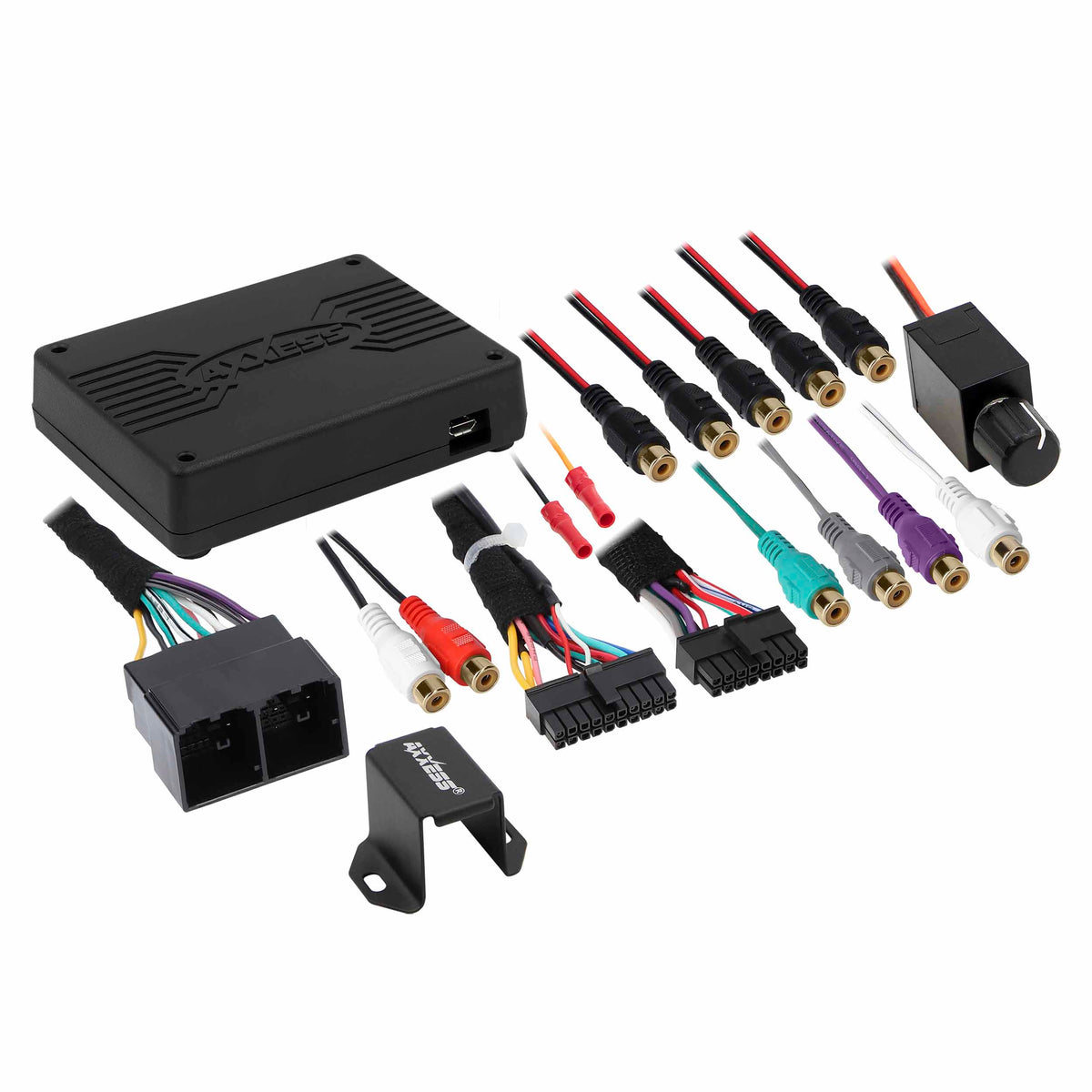

• Package includes the AXDSP-X interface and vehicle-specific T-harness
• Internal header port for adding interface modules
• Install location: At the factory radio
• Micro “B” USB updatable
• Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
• 6 inputs and 10 individually assignable outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Selectable Graphic or Parametric EQ
• Independent equalization on each of the 10 outputs
• Each channel can be delayed independently up to 10 ms
• Chime control for GM vehicles
• Clipping detection and limiting circuits
• Bass knob included
• Retains OE voice prompts (OnStar®) if vehicle is equipped
• Retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped
• Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets
• Easy behind the radio installation
• Can be used with factory and aftermarket radios
• Read, write, and store configurations for future recall
• Password protect feature available in the app

Confirm the exact vehicle, factory audio system and required companion parts before installation. Professional installation recommended.

Manufacturer specifications, installation instructions and vehicle fit guide
