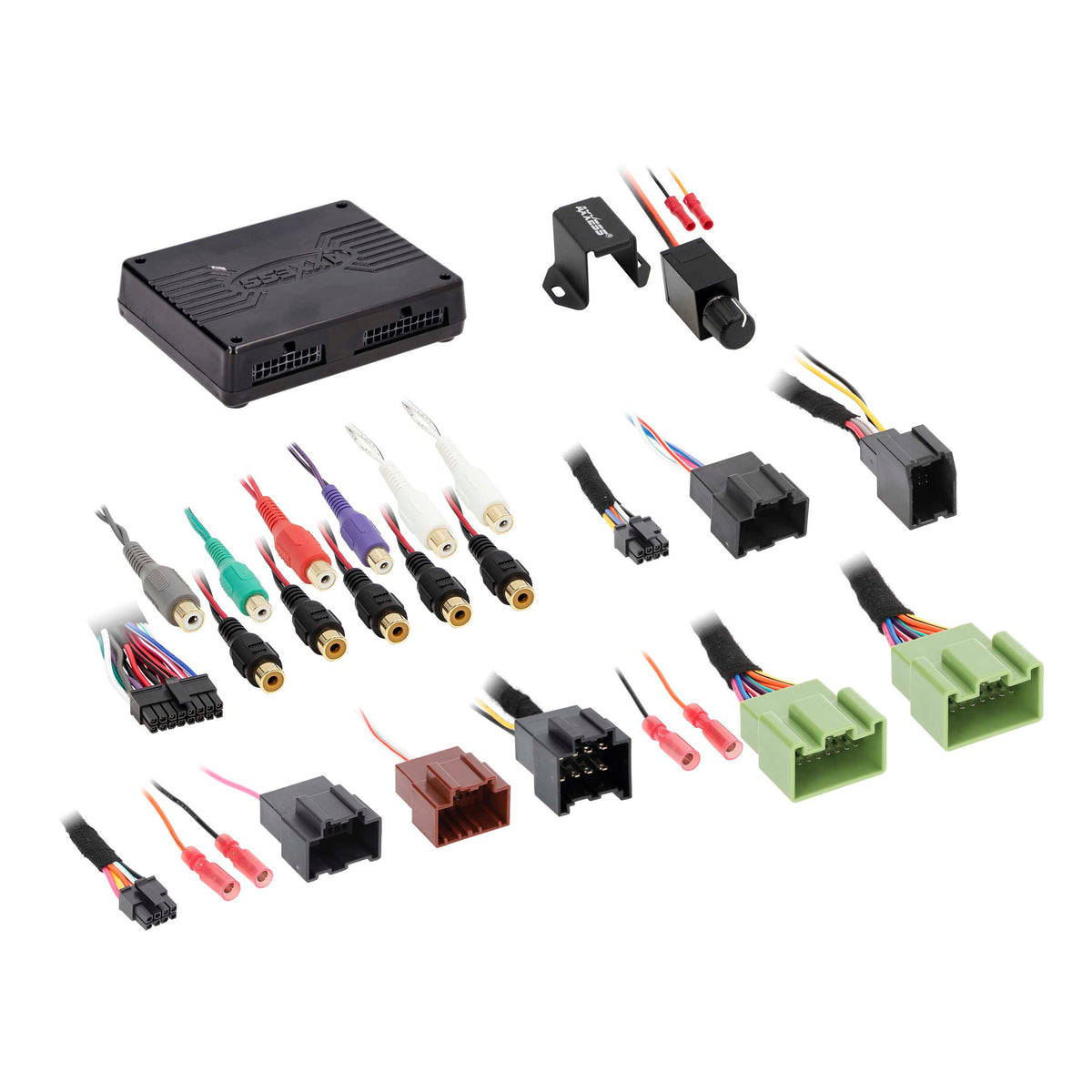

Axxess AXDSPX-ETH1 DSP Data Interface - GM 2019-Up

DSP Data Interface - GM 2019-Up

• Designed for Ethernet amplifiers
• Package includes the AXDSP-X interface and vehicle-specific T-harness
• Chimes and voice prompts go through the aftermarket amplifier
• Install location: At the factory amplifier
• Micro “B” USB updatable
• Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high-pass, low-pass, and bandpass filters
• 6 inputs and 10 individually assignable outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Selectable Graphic or Parametric EQ
• Independent equalization on each of the 10 outputs
• Each channel can be delayed independently up to 10 ms
• Chime control for GM vehicles
• Clipping detection and limiting circuits
• Bass knob included
• Retains OE voice prompts (OnStar®) if the vehicle is equipped
• Retains factory chimes, including parking sensor and cross-path detection alerts, if vehicle is equipped
• Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets
• To be used with factory radios
• Read, write, and store configurations for future recall
• Password-protect feature available in the app

Confirm the exact vehicle, factory audio system and required companion parts before installation. Professional installation recommended.

Manufacturer specifications, installation instructions and vehicle fit guide
