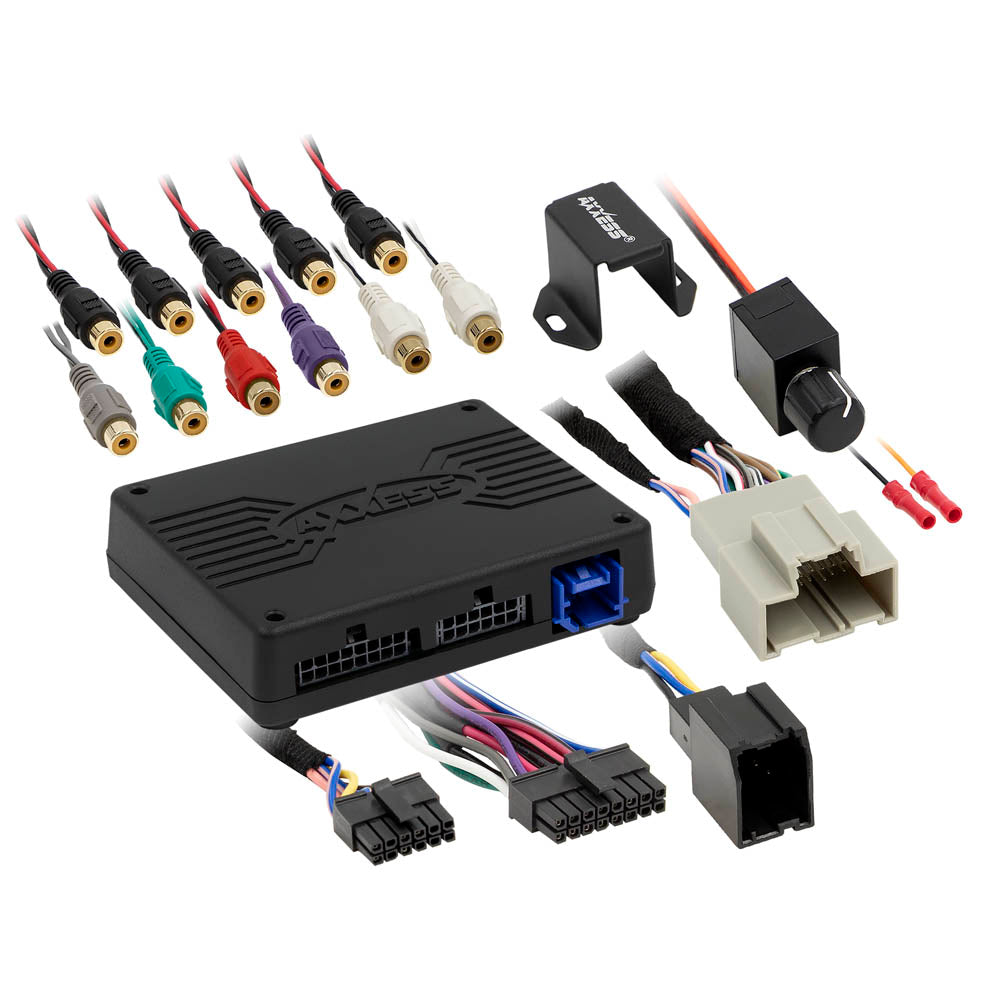

Axxess AXDSPX-A2B2 A2B DSP Data Interface - Ford 2018-Up

A2B DSP Data Interface - Ford 2018-Up

• Designed for select vehicles with a B&O A2B amplifier
• Package includes the A2B data interface with built-in AXDSP-X technology, vehicle-specific T-harness, and an amplifier bypass harness
• Factory amplifier does not need to be retained
• Chimes and voice prompts go through the aftermarket amplifier
• Install location: At the factory amplifier
• Micro “B” USB updatable
• Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
• 6 inputs and 10 individually assignable outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Selectable Graphic or Parametric EQ
• Independent equalization on each of the 10 outputs
• Each channel can be delayed independently up to 10 ms
• Clipping detection and limiting circuits
• Bass knob included
• Retains OE voice prompts (SYNC®) if vehicle is equipped
• Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets
• To be used with factory radios
• Read, write, and store configurations for future recall
• Password-protect feature available in the app

Confirm the exact vehicle, factory audio system and required companion parts before installation. Professional installation recommended.

Manufacturer specifications, installation instructions and vehicle fit guide
