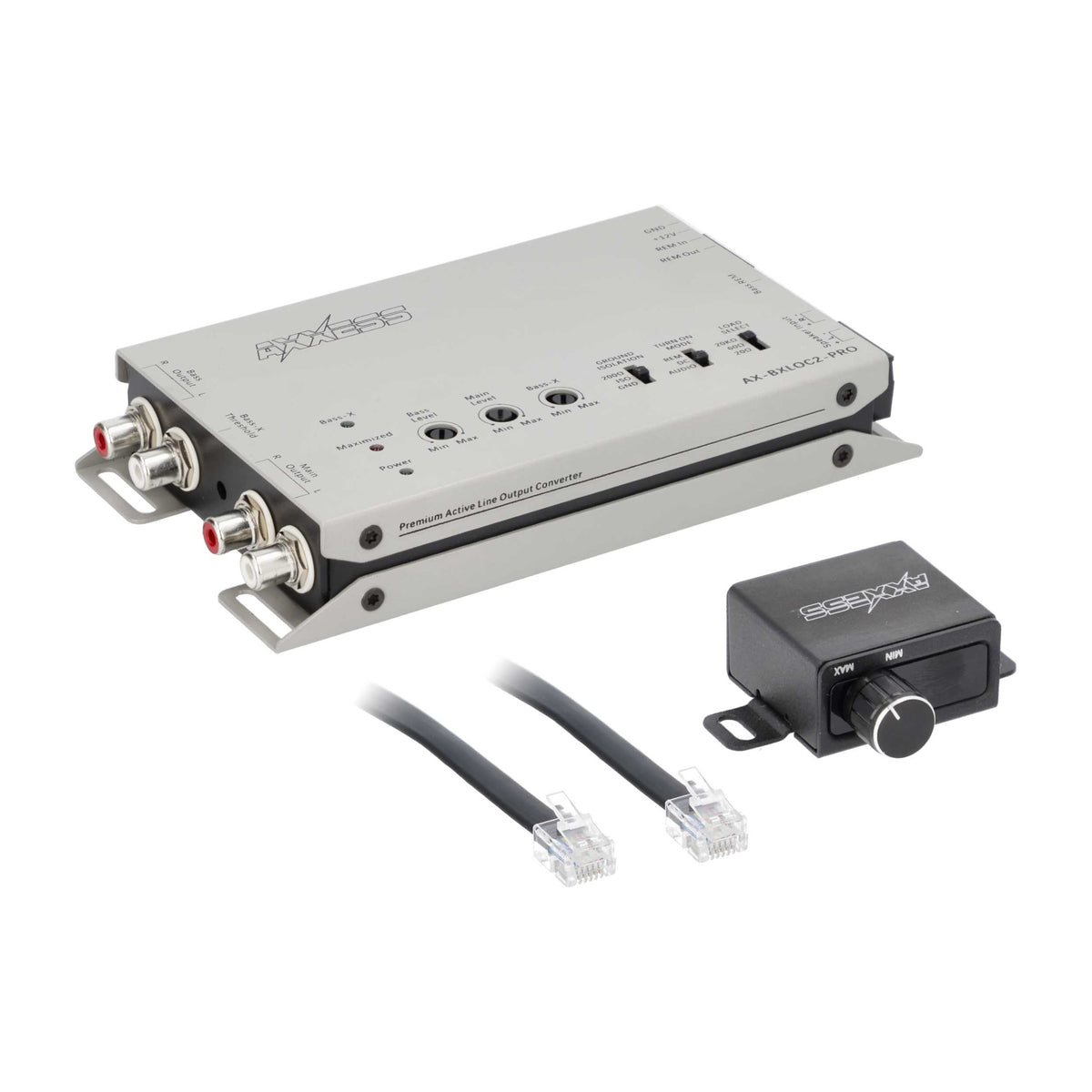

Axxess AX-BXLOC2-PRO 4-Channel Active LOC with Bass Restoration

4-Channel Active LOC with Bass Restoration

• 4-channel: 2 in, 4 out
• Max input level: 40V / 400W @20K Ohm
• Operating voltage: 9V-16V
• Trigger selection: REM / DC / AUDIO
• Remote Output Rating 500mA
• Turn on trigger (DC): 3V-7V
• Output max @13.8V: 9.5V RMS
• Input impedance selection: 20 / 60 / 20k Ohm
• Ground selection: GND / ISO / 200 Ohm
• Gain adjustment: – 28dB to +1dB
• Input sensitivity: 0.5V-20V
• Signal to noise: >110dB @6.4V output
• THD+N (Total Harmonic Distortion): <0.01%
• Frequency response: 20Hz – 20kHz
• Bass boost: 0dB + 12dB
• Built-in load resistors
• Plug-n-play remote bass knob with voltmeter included

Confirm the exact vehicle, factory audio system and required companion parts before installation. Professional installation recommended.

Manufacturer specifications, installation instructions and vehicle fit guide
